LED Dance Display Floor Supplier - Leeman LED Screen for Rental

LED Dance Display 500×1000 Interactive Dance Floor LED Screen 1000×500 Indoor

Interactive LED Floor Display 500×1000 Indoor Interactive Dance Floor LED Screen Manufacturer
Compared with the traditional LED display, the floor LED display adopts a special design in terms of load-bearing,
protection performance, and heat dissipation performance.
Its purpose is to make the floor tile screen adaptable to high-intensity stepping and long-term stable operation.

Easy Installation – Dance Floor LED Screen
LED floor tiles display supports multiple installation methods. According to the actual installation environment,
you can choose different installations.Ground installation, embedded installation,
steel frame installation, or rail installation are all ok.

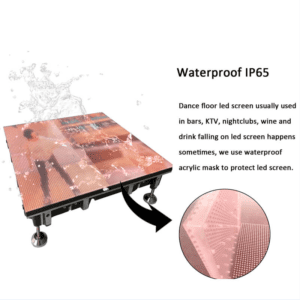

Interactive LED Dance Floor Display Module with Anti-scratch Mask
The cabinet is suitable for modules of 250x250mm, and the mask is convexly designed to enhance
the wear resistance of the surface of the module,and the protective rubber ring increases waterproof performance

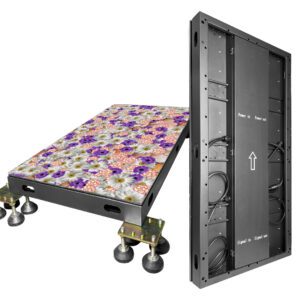

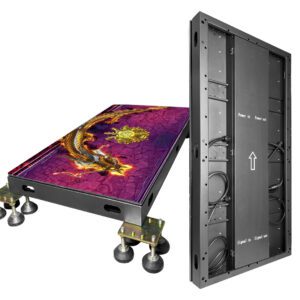

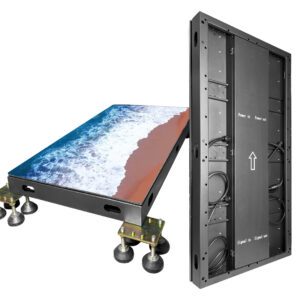

Excellent cabinet design
High-protection cabinet design, IP66 dustproof and waterproof, openable back cover, easy to maintain power supply and receiving card.

Super Strong Load-bearing Performance
Loading over 2,000KG/m² (a SUV car) on LED Panel,
Good load bearing is the key to ensure the normal operation of the display equipment.

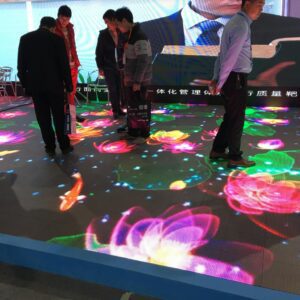

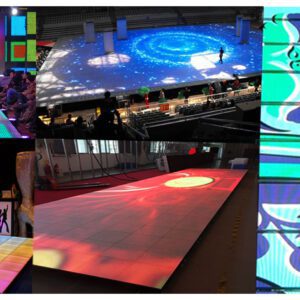

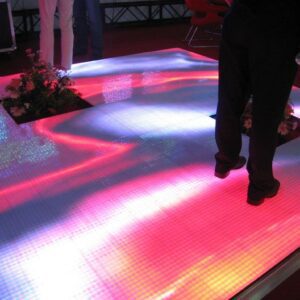

Wide Application
Interactive Dance Floor LED Display Archives are widely used in bars, such as Dance Floor LED Display, also theaters, hotels, stage performances,
concert halls, shopping malls and other places.

Pixel Pitch (mm)	P2.97	P3.91	P4.81	P5.2	P6.25
Model	LM-Floor-P2.97	LM-Floor-P3.91	LMFloor-P4.81	LM-Floor-P5.2	LM-Floor-P6.25
Pixel Configuration	SMD1415	SMD1921	SMD1921	SMD1921	SMD1921
Density (Pixels/㎡)	112,896	65,536	43,264	36864	25600
Module Resolution (Pixel)	84×84	64×64	52×52	48×48	40×40
Module Size (mm)	250×250	250×250	250×250	250×250	250×250
Driving Mode (Duty)	1/21	1/16	1/13	1/12	1/10
Cabinet Size (mm)	500×1000	500×1000	500×1000	500×1000	500×1000
Cabinet Weight (KG)	25	25	25	25	25
Brightness (CD/㎡)	≥2,500	≥2,500	≥2,500	≥2,500	≥2,500
Viewing Angle (°)	120	120	120	120	120
Gray Grade (Bits)	14	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	720	720	560	800	800
Avg. Power Consumption (W/㎡)	240	240	190	400	400
Frame Frequency (Hz)	≥60	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3,840	≥3,840	≥3,840	≥3,840	≥3,840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000	100,000
Protection Grade	IP66(front), IP65(rear)	IP66(front), IP65(rear)	IP66(front), IP65(rear)	IP66(front), IP65(rear)	IP66(front), IP65(rear)
