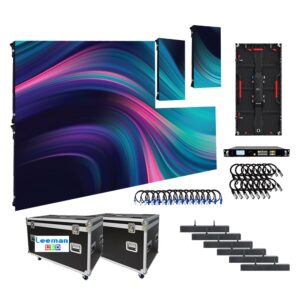

P1.99 LED Video Wall Screen 1000×500

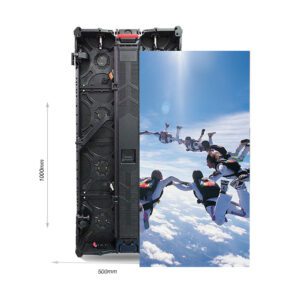

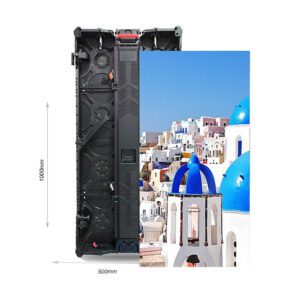

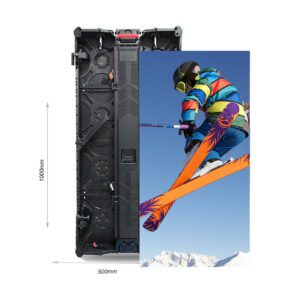

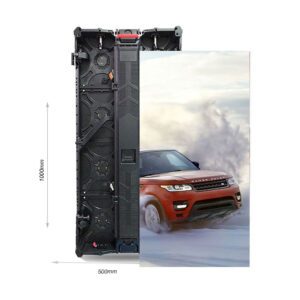

Light:500*1000mm,14.5~14.85kg/cabinet ;one person can carry,installation saves time and effort.

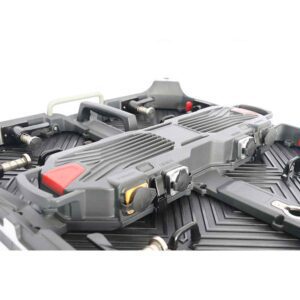

Thin: die-casting aluminum,hight-strength ,hight-tenacity,high-precision ,not easy to deform,thickness only for 8cm.
Flat :flatness error less than or equal to 0.1mm ,effectively eliminate mosaic phebomenon.

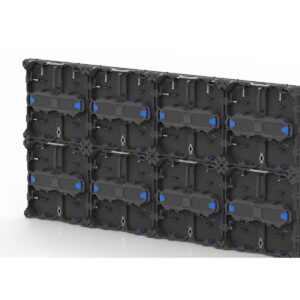

Fast: cabinet UDLR use fast lock , tow seconds locked adjacent cabinets, air plug wiring connect more fast.
Easy :magnetic modular design , any position breakdown can easy to front/back service and installation.
Allow :compatibility design , allow indoor and outdoor liftoing ,allow various dot pitch .
Height : hight-gray ,high-refresh ,gray 13bit ,refresh rate 1920/3840Hz.
Low: heat dissipation design,no need fan and air conditioner, low noise , less weight , low power dissipation.
- Customized: If have special needs on size, lamps, IC or other requests, pls contact us online or email us.
- 2 Year Warranty
- Free tech guide

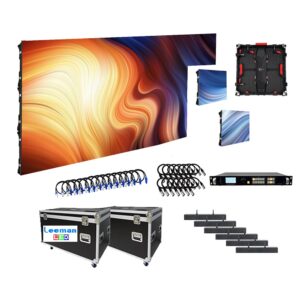

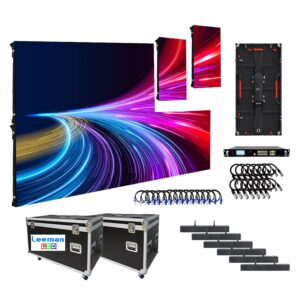

- 5% Spare Part, Power Supply, Receiver cards included.
- Lead time: 15-21 working days.

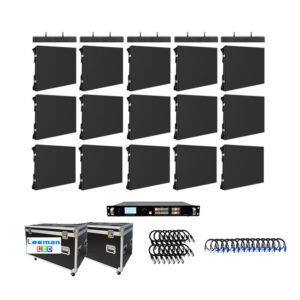

- Package：Flight Case
P1.99 LED Video Wall Screen 1000×500 Specifications
| Indoor | Outdoor | |||||||
| Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm | 2.976mm | 3.91mm | 4.81mm |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD1415 | SMD1921 | SMD1921 |
| Density (dots/m²) | 262144 | 147456 | 112608 | 65025 | 43264 | 112896 | 65025 | 43264 |
| Scan | 1/32 | 1/32 | 1/14 | 1/16 | 1/13 | 1/21 | 1/16 | 1/13 |
| Module Resolution (dots) | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 | 84×84 | 64×64 | 52×52 |
| Cabinet Resolution | 256×256 | 192×192 | 168×168 | 128×128 | 104×104 | 168×168 | 128×128 | 104×104 |
| Refresh rate | 3840 HZ | 3840 HZ | 1920 HZ | 1920 HZ | 1920 HZ | 3840 HZ | 3840 HZ | 3840 HZ |

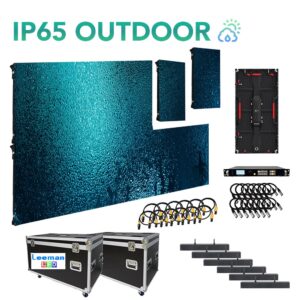

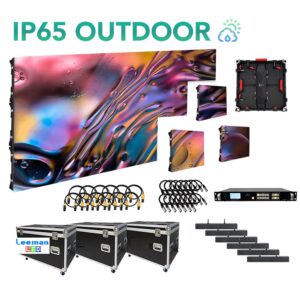

| Protective grade | IP54 | IP65 | ||||||
| Brightness | 800-1000cd/m² | 4500-5000cd/m² | ||||||
| Cabinet Weight | 14.5 kg / 32.53 lbs | |||||||
| Module Size | 250x250mm | |||||||
| Cabinet Size | 500 x 1000 x 80 mm (WxHxD)/ 19.6 x 38.6 x 3.14 inch (WxHxD) | |||||||
| Material | Magnesium alloy | |||||||
| View Angle | 140 degree ( horizontal) 140 degree(vertical) | |||||||
| Digital Processing | 14/16 Bit | |||||||
| Gray Scale | 16384 Level | |||||||
| Colors | 687 Million | |||||||
| Serviceability | Front and back service | |||||||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||||||
| Warranty | 2 years standard product warranty | |||||||
