250×250 Outdoor P4.81 Front Access LED Display Module 250×250

Original price was: $71.80.Current price is: $28.00.

Model:P4.81-OD6S-SMD1921-52×52

Brightness:≥6,000CD/㎡

Power consumption:35W

Viewing angle:H:120°,V:120°

Product description: P4.81 Outdoor, reliable Nationstar SMD1921, high resolution outdoor front service LED display solution.

or
SKU: Leeman 250x250 Outdoor P4.81 Front Access LED Display Module 250x250 Categories:

Share:

250×250 Outdoor P4.81 Front Access LED Display Module P4.81 Outdoor 500×500 Die-Cast Rental Curved LED Display Screen for Churches

 Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

Features of P4.8 Outdoor 500×1000 Front Service LED Module:
1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.
2) Easy maintenance, easy to take the modules with a hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 3.91mm pixel pitch with SMD, perfect solution for semi-outdoor advertising LED screen and outdoor rental LED screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Reasonable PCB design, reliable and long life time.
Applicable situations of  P4.81 Outdoor 500×500 Front Access LED Display Module:
Outdoor LED signs requiring front maintenance
Commercial video screens with small sizes
Double face LED signs
Small LED banner signs
Outdoor rental LED screen requiring fast maintenance
Parameters of  P4.81 Outdoor 250×250 Front Access LED Panel Modulee:
Module Parameter
Pixel Pitch 4.81mm
Pixel Configuration SMD1921
Density 43,264 pixels/
Module Resolution 52pixel(L) *52pixel(H)
Module Dimension 250mm(L) * 250mm(H) * 18mm(D)
Driving Mode Constant current, 1/6 duty
Module Mask Pure black mask—high contrast screen
Electricity Parameter
Optical Ratings
Brightness ≥6,000 cd/
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥5m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Max. Power Consumption 35 W
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100M (Ethernet cable);
20KM (Optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20+60 ºC
Storage Temperature -30+70 ºC
Working Humidity 10%90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP65
Out-of-Control Pixel Rate ≤0.01%

More Pictures of Outdoor P4.81 Front Access LED Module 250×250:

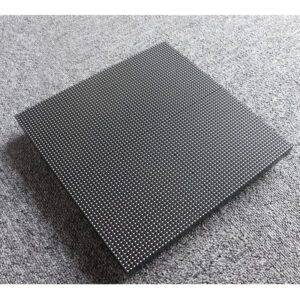

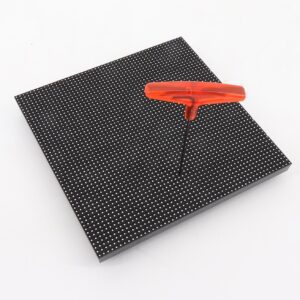

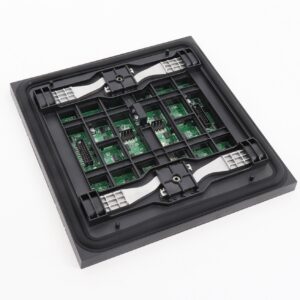

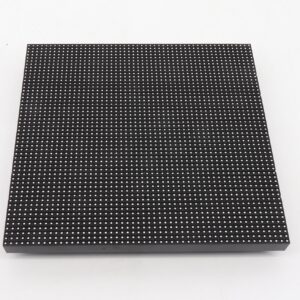

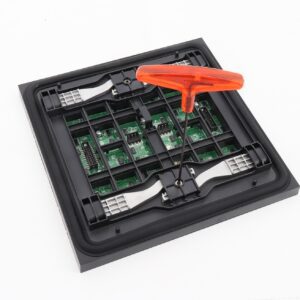

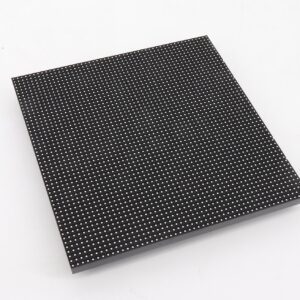

P4.81 Outdoor 250x250 Front Access LED Panel Module:

P4.81 Outdoor 250x250 Front Access LED Panel Module:

P4.81 Outdoor 250x250 Front Access LED Panel Module:

P4.81 Outdoor 250x250 Front Access LED Panel Module:

P4.81 Outdoor 250x250 Front Access LED Panel Module:

P4.81 Outdoor 250x250 Front Access LED Panel Module:
