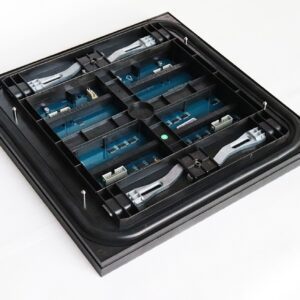

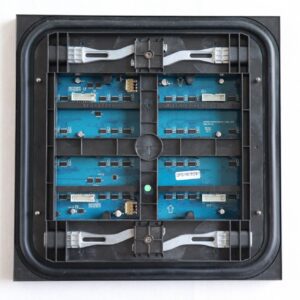

P16 DIP 1R1G1B LED Module 320×320 High Brightness 9000nits Outdoor Front Access LED Display
Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
P16U1L-RGB20X20-Y1304-SWH | P16U1L-RGB20X20-X1304-SWH |
P16U1L-RGB20X20-Y1302-SWH | P16U1L-RGB20X20-Y1301-SWH |
P16U1L-RGB20X20-X1035-SWH | P16U1L-RGB20X20-X1034-SWH |
Parameters of P16 1R1G1B 320×320 Outdoor Front Access LED Module:
Item | Specification |
LED type | DIP346 |
Pixel pitch | 16mm |
Pixel configuration | 1R1G1B |
Module Size | 320x320mm |
Module resolution | 20x20pixels |
Density | 3,906 pixels/ ㎡ |
Driving Mode | Static |
Brightness | ≥9000CD/ ㎡ |
Viewing angle | H:120°, V:120° |
Best viewing distance | 16m—100m |
Working voltage | 5V |
Power consumption | 54W |
Module weight | 2.5KG |
>Protection grade | Front: IP43 |
Working Temperature | -20 ~60℃ |
