P3.33 Outdoor LED Display Module 960x960 Fixed installation LED Screen

P3.33 Outdoor LED Display Module 960×960 Fixed installation LED Wall Screen

Notice before order:

1) Parts included : High-quality steel cabinets, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P3.076 Indoor 960x960mm Die-cast Fixed installation LED Panel Wall Features:

1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 120 degrees.

2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness

difference is within 10%.

3) Small gaps between modules and perfect screen flatness. The gaps between modules are smaller than 1 mm and screen flatness is less than 1 mm.

4) Different cabinet styles are available, such as fixed installation style, rental hanging style, ultra-thin style.

P3.076 Indoor 960x960mm Die-cast Fixed installation LED Panel Wall Applications:

Indoor Rental LED Screen

Indoor commercial LED screen

Indoor stage background LED curtain

P3.33 Outdoor LED Display Module 960×960 Fixed installation LED Wall Screen Parameter:

Item	Technical Parameters
Nationstar Full black Gold Wire SMD LED Lamp Parameters
Item Name	LED Type
Red LED	SMD 1921 / SMD 1415
Green LED	SMD 1921 / SMD 1415
Blue LED	SMD 1921 / SMD 1415
LEEMAN LED Display Module Specification
Pixel Pitch	LeemanLED-P3.33mm
Pixels Density	90,000 pixels/m2
LED Configuration	Nationstar SMD RGB 3in1
Package Mode	SMD1415 or SMD1921
Module Size	320mmx160mm and 160mmx160mm and 200mmx200mm
Module Resolution	96 x 48 pixels and 48 x 48 pixels and 60 x 60 pixels
Module Pixles	4608 pixels and 2304 pixels and 3600 pixels
Max Power Consumpion	50W and 40W and 45W
Module Thickness	25mm
PCB Board	4 Layer PCB Board With 1.6mm
Driving IC	MBI5253 or ICN2163
Drive Type	Constant drive
Driving Method Scan Mode	Dynamic 1/12 Duty constant current
Port Interface Type	HUB75
Module Input Voltage	DC 5V
Brightness of White Balance	≥6500cd/㎡
Module Mask	Pure Black mask-high contrast screen
LEEMAN LED Display Cabinet Specification

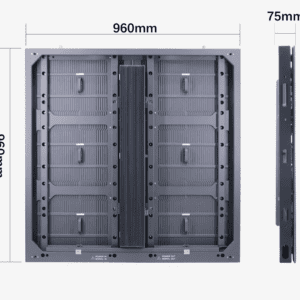

Cabinet Size (W X H X D)	640mm x 640mm x 65mm or 960mm x 960mm x 75mm
Cabinet Resolution (dot)	192 x 192 pixels
Module Quanity (pcs)	8pcs
Cabinet Pixels	36864 pixels
Pixel Density	90,000 pixels/m2
Cabinet Materials	Die Casting Aluminum Cabinet for rental purpose
Cabinet Weight	6.5kg per cabinet
Packaging	Fly case
Whole LEEMAN LED Display Screen Specification
Screen Brightness	≥6500cd/m2
Driving Method	Constant current
Best Viewing Distance	3m – 80m
Max. Power Consumption	800W/m2
Average Power Consumption	400W/m2
Gray Level	8bits input, 4096 levels(212)
Display Color	256M
Frame Frequency	≥60Hz
Refresh Frequency	≥3840Hz – 6420Hz
Uninterrupted Working Hours	≥72 hours
Screen Life-span	≥100,000 hours
MTBF	≥10,000 hours
Discrete Blind Spot Rate	<1/10000
Continuous Blind Spot Rate	None
Blind Spot Rate	<1/10000
Waterproof Level	IP65
Protective Scale	For outdoor and indoor use, waterproof
Screen Plainness	<±1mm
Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
Environment Temperature	Temperature:-20 Celsius~+60 Celsius
Humidity	Humidity:10%~90% RH
Control Mode	Synchronous display with control PC by DVI
Control System	Linsn LED, Novastar LED, Colorlight LED or as you required
Display Content	HDMI ,DVI, VGA, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
Interface	Standard Ethernet
Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
Power Supply Brand	G-energy, MeanWell, Chuanglian or as you required
Certificate	CE, RoHS, FCC, UL, EMC
