IP68 Aluminum Bottom Shell LED Module 320x320 Outdoor LED Display

IP68 Aluminum Bottom Shell LED Module 320×320 Outdoor Dual Service P10 Dual Maintenance LED Display

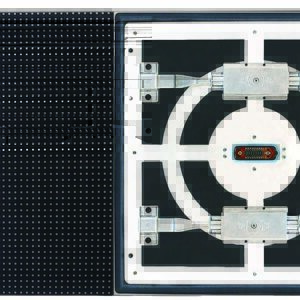

Outdoor P10mm Dual Service LED Display Module Size is 320mmx320mm With 32x32dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
If you want to build led screen,please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

IP68 Aluminum Bottom Shell LED Module 320×320 Outdoor Dual Service P10 Dual Maintenance LED Display

P10mm LED Module Specifications:
Pixel pitch	10mm
Module Size	320X320mm
Model Pixel	32X32 Pixels
lattice density	10000 dots/square meter
Pixel form	SMD3535
Best viewing distance	10m~100 m
Max power consumption	800W/square meter
Ave power consumption	320W/square meter
Max power per module	71W
warranty	2 years
Drive mode( Optional)	Constant current 1/2 scan
Control system	DVI card Full color control card
Pixel type	Real pixel
refresh frequency	960-1920 HZ
Horizontal View Angel	> 110 degree
Working Environment	Temp:-20Celsius degree- 60Celsius degreeHumidity : 10%-90%
Working voltage	DC 5V
Lifetime	>=100000 hours
Gray scale	12 bit/ 1 color
Color display	manual adjust
Brightness	5500-6500 nits
Blind spot rate	<0.00001
Waterproof Class	IP68
Software	Support window series system

High Quality LEDs:

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72 Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.

Front & Rear Maintanence Service:

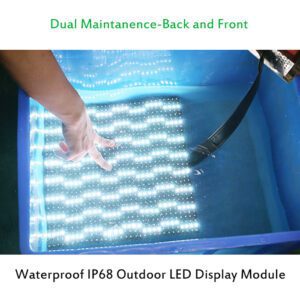

Dual-mode maintenance (Front & Rear Service) outdoor LED module , saving the maintenance space and being compatible with hard installation conditions.
