P2.5 Outdoor Flexible LED Module 320x160 | 250X250

P2.5 Outdoor Flexible LED Module 320×160 IP65 High Waterproof Flexible LED Screen 480x320mm

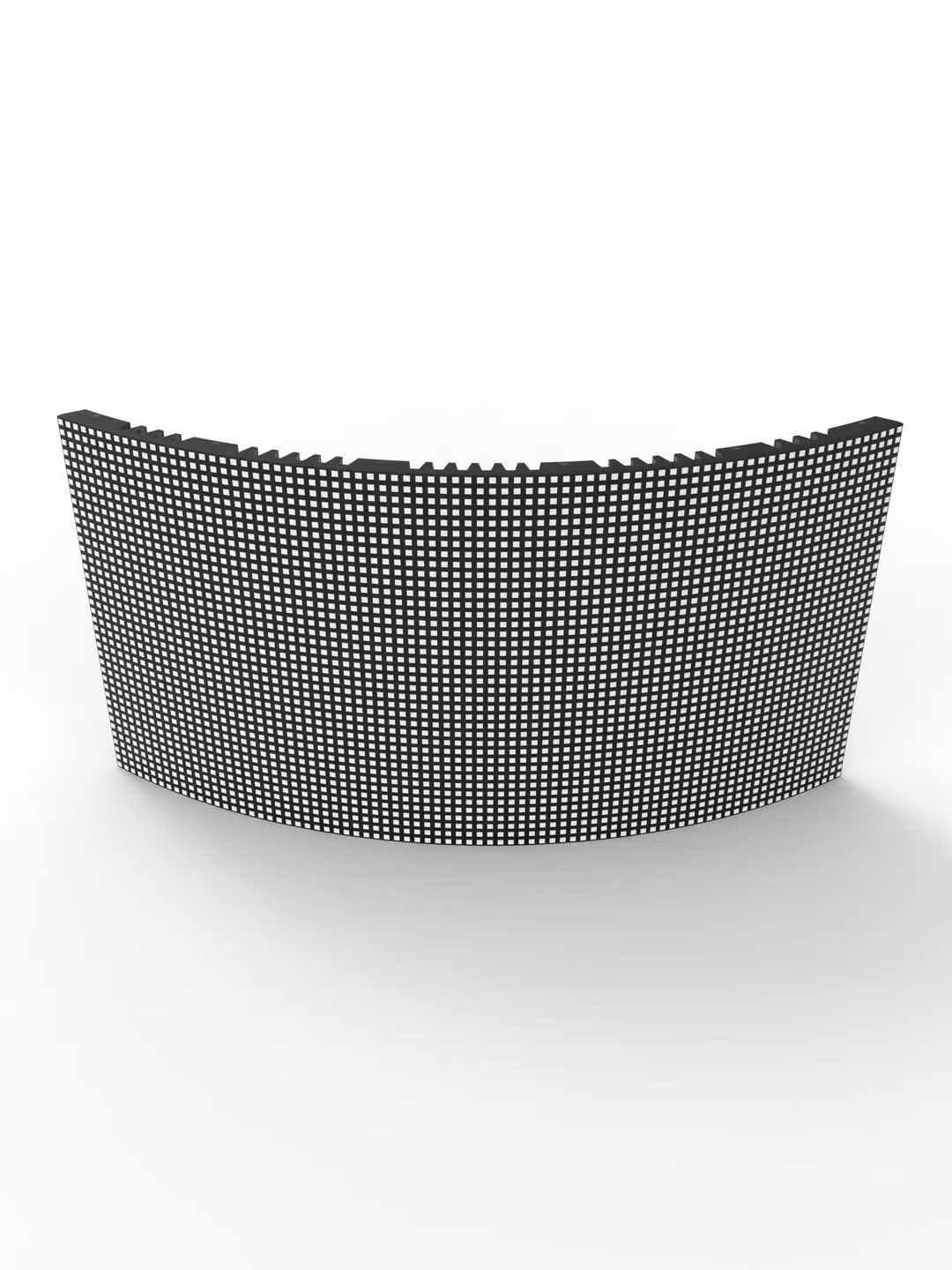

P4mm Outdoor Flexible LED Module

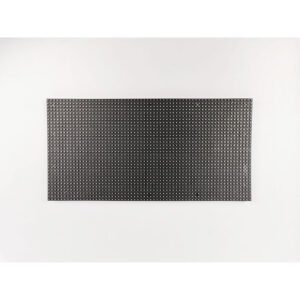

Standardized Size Design 320X160mm LED Module
IP65 Waterproof, Outdoor is Available
High Flexibility, High Brightness, High Refresh
Support Front & Rear Maintenance/Installation
Protective mask, Dustproof and Anti-reflective
Anti-fall Safety Rope Improves Safety Level

Excellent Visual Effect
New arrivals p4mm outdoor soft led module size is 320x160mm. It adopts cell design with extreme visual beauty. The tyre texture increases the shaping force of the product and the fit with the cabinet, effectively improving the flatness and use effect of the screen.

High Waterproof & Dustproof

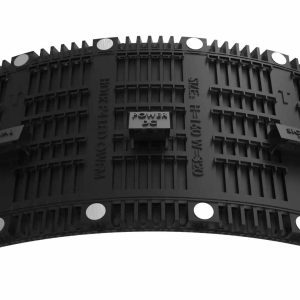

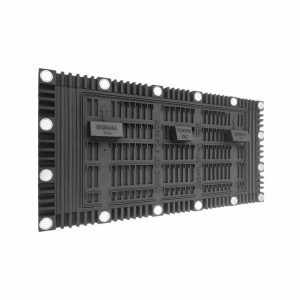

Soft sealed silicon rear cover get IP65 waterproof and high dustproof level. Special waterproof design of interfaces increase interfaces’ safety.

Better High Flexibility

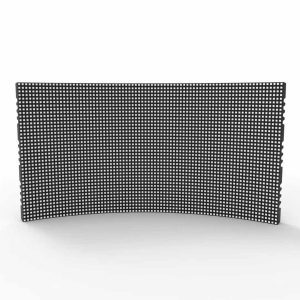

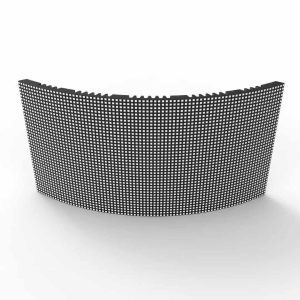

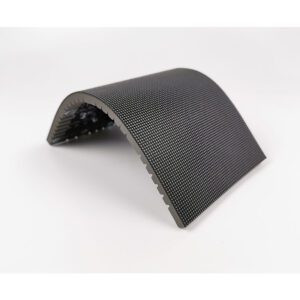

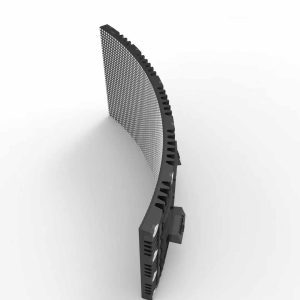

Leeman P2mm P2.5mm P3mm P4mm P5mm P6mm P8mm P10mm outdoor soft flexible led module support concave and convex designs. The module can curve at large angle. Better flexibility, high brightness, and 3840Hz high refresh rate support diversified outdoor designs.

Anti-corrosion & Anti-dropping

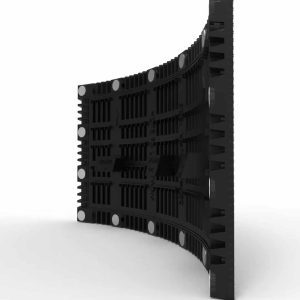

Adjustable magnet kits enhances entire evenness. The magnets has passed the 48-hour salt spray anti-corrosion test. Extra protective safety rope add for safety: tough steel rope resistant to twist and turns, double protection. Steel rope connects cabinet and modules to prevent accidental drops.

Outdoor Flexible LED Module Applications
Outdoor flexible led modules are mainly used in: outdoor central squares, exhibition venues, high-end shopping malls, airport stations, and other public places and many other media release and display places.

Items	P2.5 Outdoor Soft LED Panel	P3.076 Outdoor Flexible LED Module	P4 Outdoor Flexible LED Panel
Dimension	(W) 320mm*160mm (H)	(W) 320mm*160mm (H)	(W) 320mm*160mm (H)
Pixel pitch	2.5mm	3.076mm	4.0mm
Pixel Density	160000/ M2	105625/ M2	62500 / M2
Pixel configuration	1R1G1B	1R1G1B	1R1G1B
LED specification	NationStar SMD1415	NationStar SMD1415	NationStar SMD1921
Pixel resolution	(W) 128*64 (H)	(W) 104*52 (H)	(W) 80*40 (H)
Average power	12W	12W	12W
Panel current	5A	5A	5A
Panel weight	0.46 KG	0.46 KG	0.46 KG
Shell material	Silicone	Silicone	Silicone
Waterproof grade	IP65	IP65	IP65
Humidity	10%-95%RH	10%-95%RH	10%-95%RH
Hub connecting	HUB75 16pin	HUB75 16pin	HUB75 16pin
Best viewing angle	Horizontal > 140± 10° Vertical>130± 10°	Horizontal > 140± 10° Vertical>130± 10°	Horizontal > 140± 10° Vertical>130± 10°
Best viewing distance	5.0-30M	5.0-30M	5.0-30M
Working temperature	-80	-80	-80
Module power supply	4.2V-5V 40A	4.2V-5V 40A	4.2V-5V 40A
Working power supply	AC110V-220V±10%	AC110V-220V±10%	AC110V-220V±10%
Max power	≤600W/M²	≤600W/M²	≤600W/M²
Average power	≤200W	≤200W	≤200W
Driving device	Constant current drive	Constant current drive	Constant current drive
Drive type	1/16 Scanning	1/13 Scanning	1/10Scanning
Refresh frequency	≥3840HZ	≥3840HZ	≥3840HZ
Display color	409640964096	409640964096	409640964096
Brightness	5000 cd/M2	5000 cd/M2	5000cd/M2
Life span	100000Hours	100000Hours	100000Hours
Communication distance	< 100M	< 100M	< 100M
