P2.5 Indoor Flexible LED Display Panels 240x120mm for sale LED Screen Magnet Soft Flexible LED Module

Original price was: $33.40.Current price is: $32.00.

P2.5 Indoor 240x120mm LED Screen Magnet Soft Flexible LED Module,can be used for curved iron cabinets

or
SKU: P2.5-ISF24S-SMD1515-96x48 Categories:

Share:

P2.5 Indoor Flexible LED Display Panels 240x120mm for sale LED Screen Magnet Soft Flexible LED Module

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P2.5 Indoor Flexible LED Display Panels 240x120mm for sale LED Screen Magnet Soft Flexible LED Module Parameter:

Module Parameter
Pixel Pitch 2.5mm
Pixel Configuration SMD1515
Density 160,000 pixels/
Module Resolution 96pixel(L) * 48pixel(H)
Module Dimension 240mm(L) * 120mm(H) * 8.5mm(D)
Driving Mode Constant current, 1/24 duty
Electricity Parameter
Optical Ratings
Brightness ≥800 cd/
Viewing Angle 120°(Horizontal) 120°(Vertical)
Best Viewing Distance ≥2.5m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Max. Power Consumption 10 W
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100m(Ethernet cable);
20KM(optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20+60 ºC
Storage Temperature -30+70 ºC
Working Humidity 10%90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP31
Out-of-Control Pixel Rate ≤0.01%

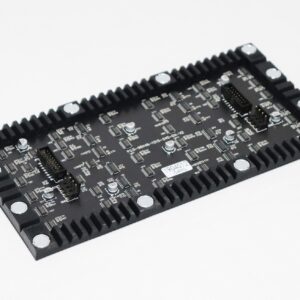

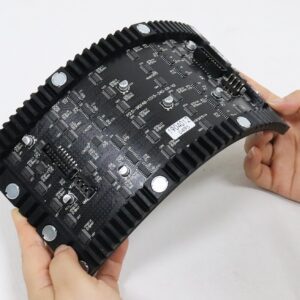

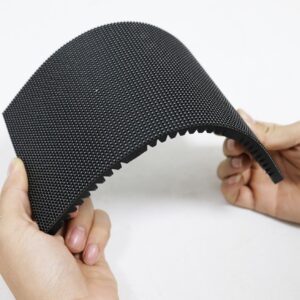

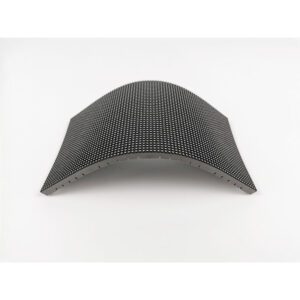

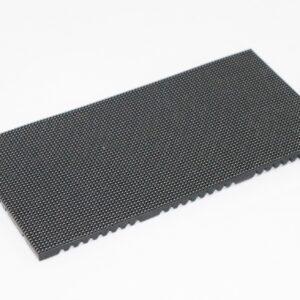

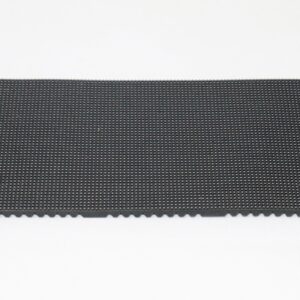

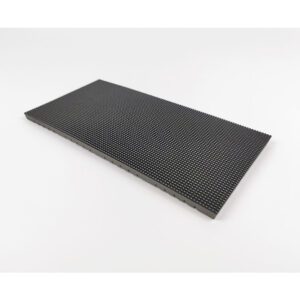

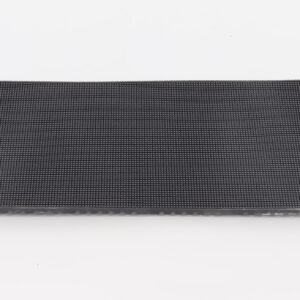

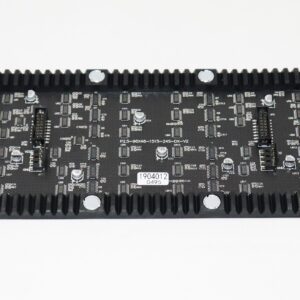

More Pictures of P2.5 Indoor 240x120mm LED Screen Magnet Soft Flexible LED Module:

 P2.5 Indoor 240x120mm LED Screen Magnet Soft Flexible LED Module

 P2.5 Indoor 240x120mm LED Screen Magnet Soft Flexible LED Module

 P2.5 Indoor 240x120mm LED Screen Magnet Soft Flexible LED Module

 P2.5 Indoor 240x120mm LED Screen Magnet Soft Flexible LED Module

 P2.5 Indoor 240x120mm LED Screen Magnet Soft Flexible LED Module

 P2.5 Indoor 240x120mm LED Screen Magnet Soft Flexible LED Module
