P3 Outdoor Flexible LED Display 160x320 Soft LED Panel 480x320

P3 Outdoor Flexible LED Display Module 160×320 Flexible LED Module 480x320mm P1.56 P1.95 P2.6 Flexible LED Module 250×250

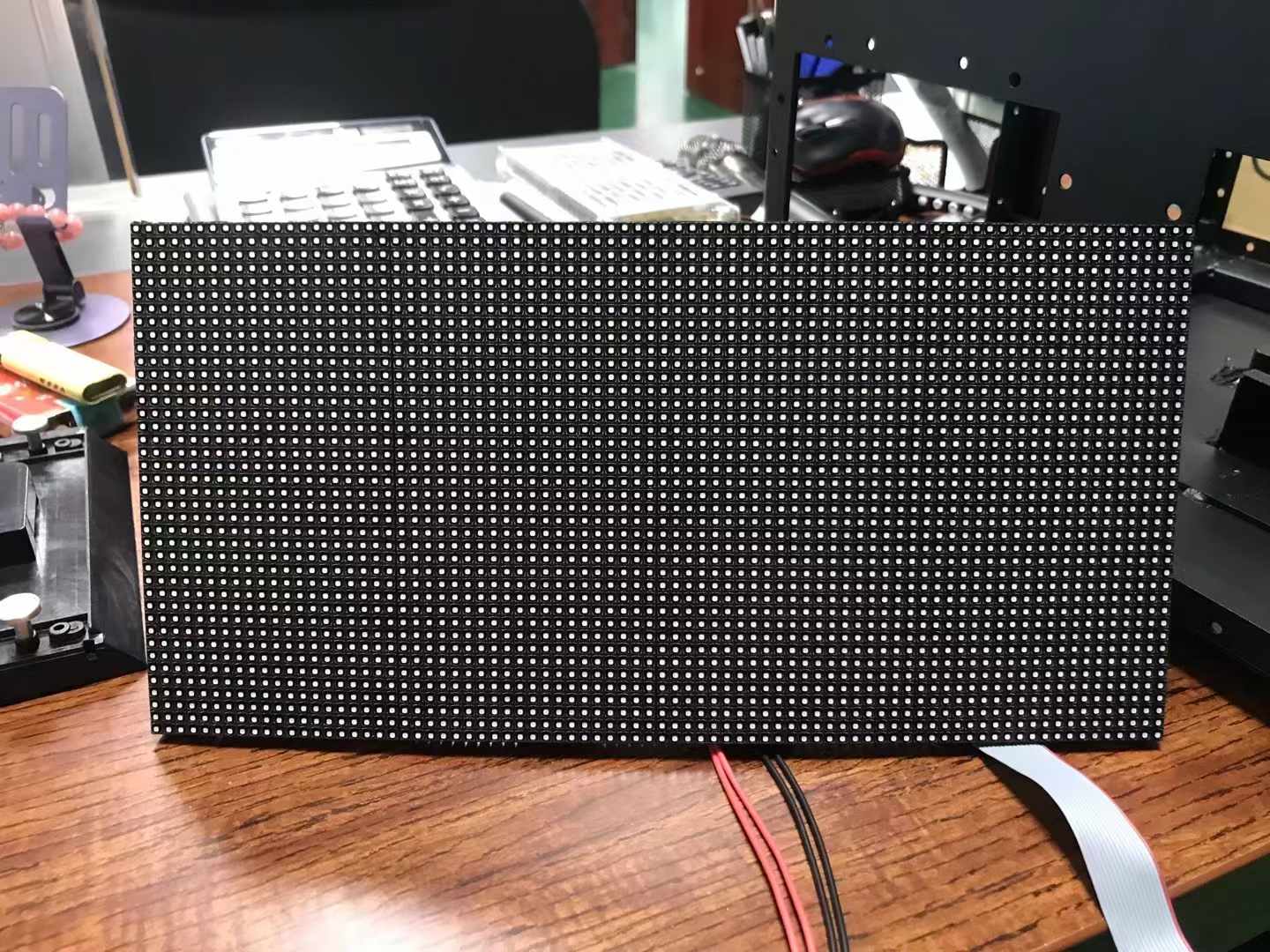

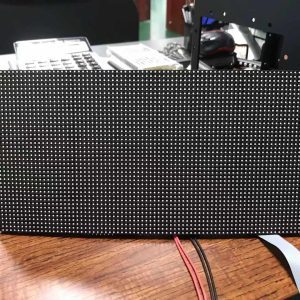

Outdoor Flexible LED Display Module Panel
The outdoor flexible LED display module is a revolutionary product designed to bring creative and dynamic visual solutions to life. Its exceptional flexibility allows it to bend and form various imaginative shapes, such as balls, cubes, arcs, rainbows, and other irregular configurations. Perfect for outdoor use, this module is equipped with an IP65 waterproof rating, ensuring it can withstand harsh weather conditions while maintaining optimal performance. Whether for artistic installations or innovative advertising, this soft LED display panel transforms any space with vibrant, eye-catching visuals.

Support pixel: P2.5, P3, P4, P5.
High waterproof rubber material.
SMD 3 in 1 LED encapsulation technology.
Front service with magnetic screws.
With top-cover to protect connector .
Exceptional bending performance.
High refresh rate over 3840hz.
UL, EMC, CE, RoHS, FCC approved

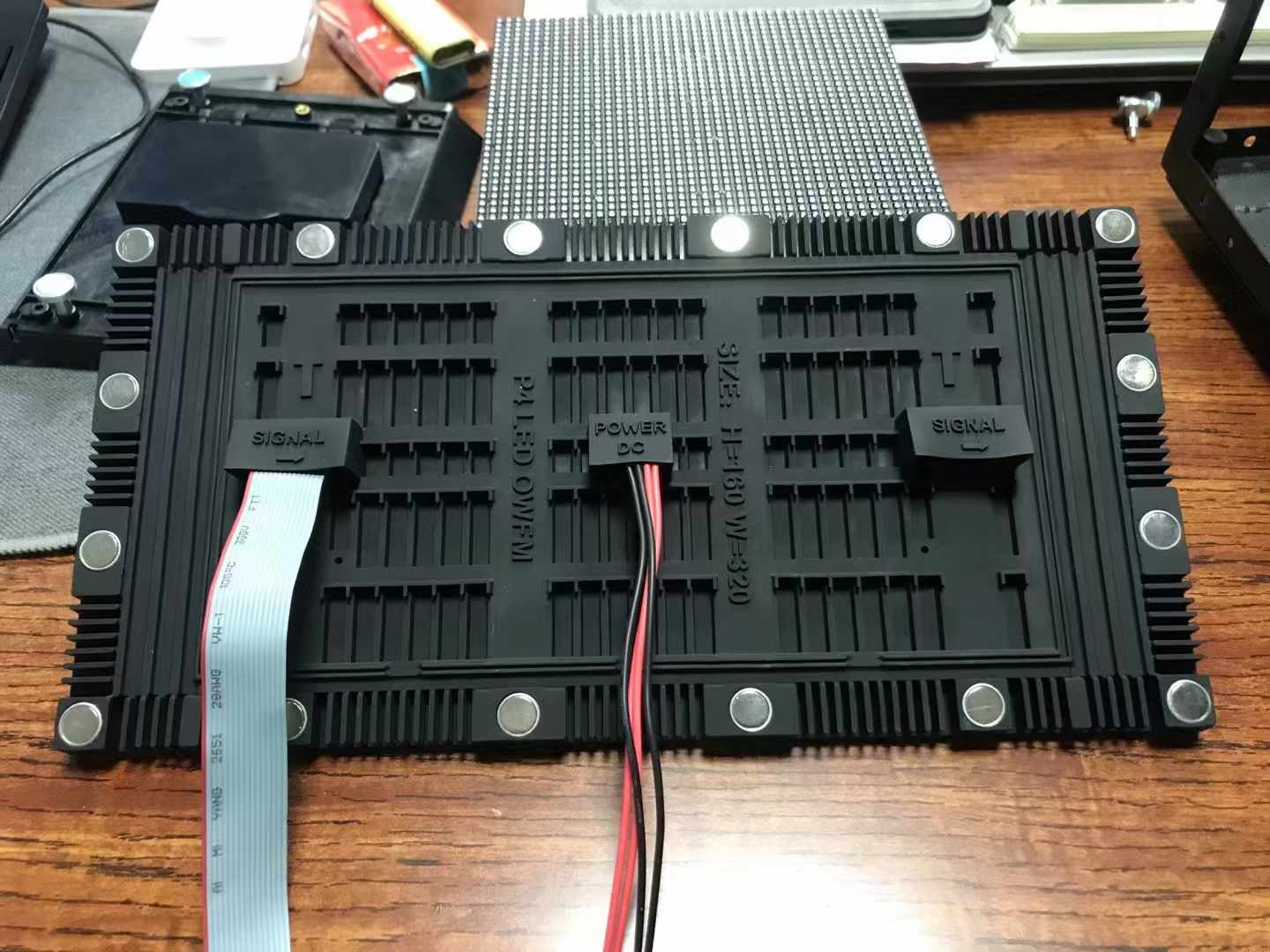

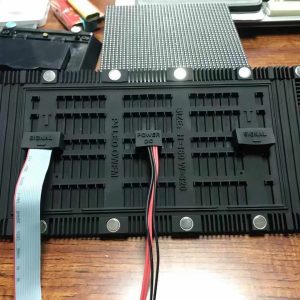

Excellent Module Layout
The outdoor flexible LED display module is designed with an outstanding layout with water guides, cable holes, safety rope, magnet, vent holes, and waterproof rubber.

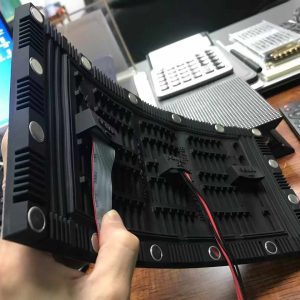

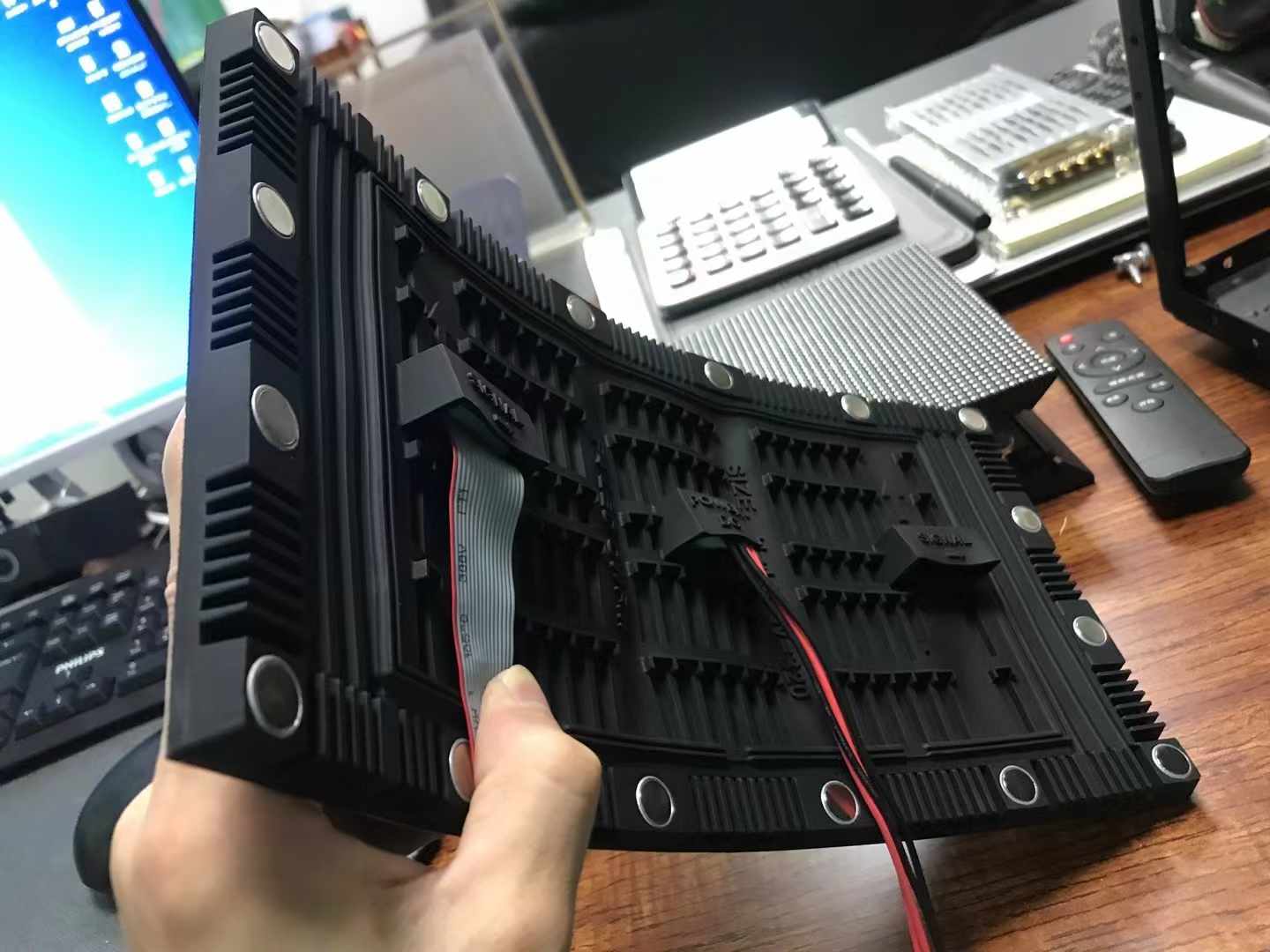

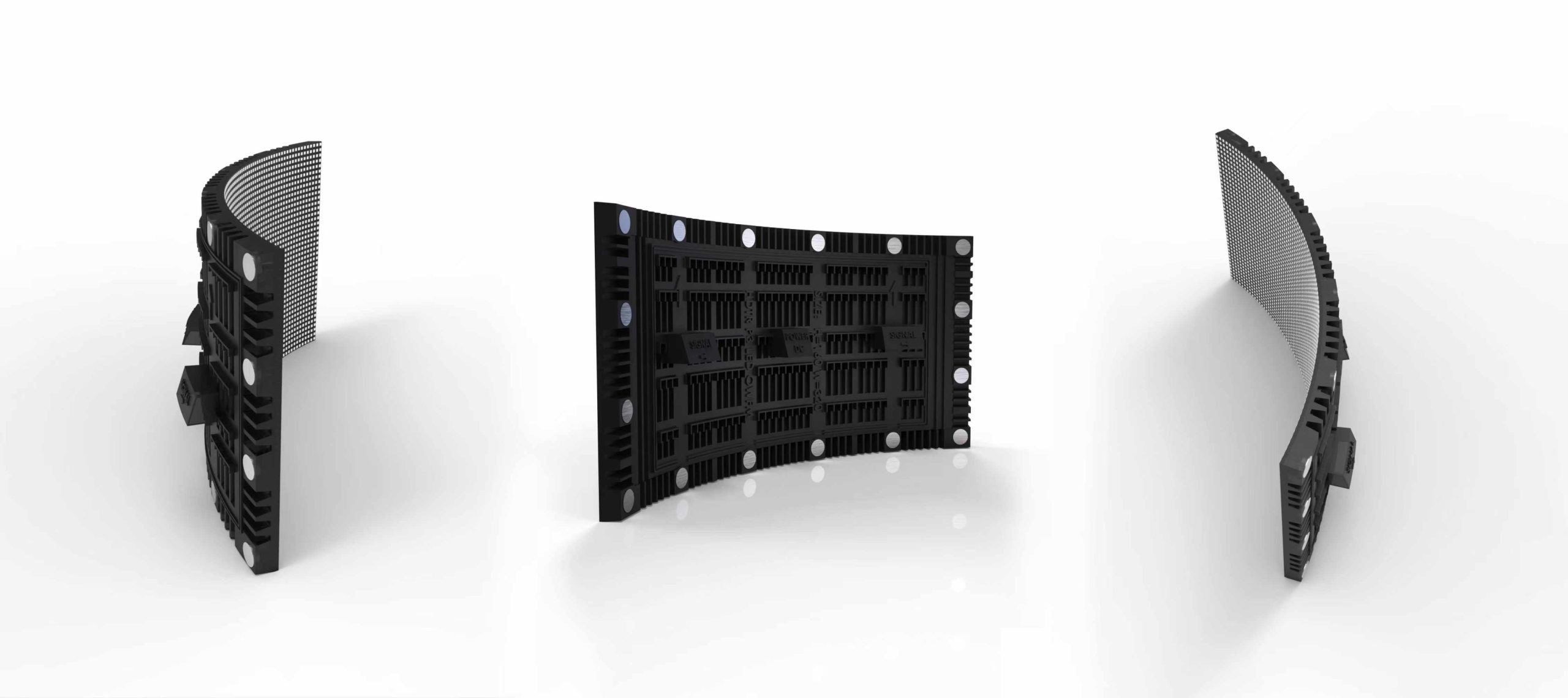

High Flexibility
Ultra-high flexibility allows the module to be bent into concave and convex shapes, meeting various creative screen requirements.

Magnetic Modules
The modules are designed as front service ways with adsorption capacity. Easy installation and replacement.

Top Cover Design
With top covers to protect the power and signal sockets, offering a higher protection grade.

IP65 Waterproof
The outdoor soft LED modules are IP65 waterproof rated, ensuring they can withstand heavy rain and harsh weather conditions.
3 Years warranty and 5% spare part

Items	P2.5 Outdoor Soft LED Panel	P3.076 Outdoor Flexible LED Module	P4 Outdoor Flexible LED Panel
Dimension	(W) 320mm*160mm (H)	(W) 320mm*160mm (H)	(W) 320mm*160mm (H)
Pixel pitch	2.5mm	3.076mm	4.0mm
Pixel Density	160000/ M2	105625/ M2	62500 / M2
Pixel configuration	1R1G1B	1R1G1B	1R1G1B
LED specification	NationStar SMD1415	NationStar SMD1415	NationStar SMD1921
Pixel resolution	(W) 128*64 (H)	(W) 104*52 (H)	(W) 80*40 (H)
Average power	12W	12W	12W
Panel current	5A	5A	5A
Panel weight	0.46 KG	0.46 KG	0.46 KG
Shell material	Silicone	Silicone	Silicone
Waterproof grade	IP65	IP65	IP65
Humidity	10%-95%RH	10%-95%RH	10%-95%RH
Hub connecting	HUB75 16pin	HUB75 16pin	HUB75 16pin
Best viewing angle	Horizontal > 140± 10° Vertical>130± 10°	Horizontal > 140± 10° Vertical>130± 10°	Horizontal > 140± 10° Vertical>130± 10°
Best viewing distance	5.0-30M	5.0-30M	5.0-30M
Working temperature	-80	-80	-80
Module power supply	4.2V-5V 40A	4.2V-5V 40A	4.2V-5V 40A
Working power supply	AC110V-220V±10%	AC110V-220V±10%	AC110V-220V±10%
Max power	≤600W/M²	≤600W/M²	≤600W/M²
Average power	≤200W	≤200W	≤200W
Driving device	Constant current drive	Constant current drive	Constant current drive
Drive type	1/16 Scanning	1/13 Scanning	1/10Scanning
Refresh frequency	≥3840HZ	≥3840HZ	≥3840HZ
Display color	409640964096	409640964096	409640964096
Brightness	5000 cd/M2	5000 cd/M2	5000cd/M2
Life span	100000Hours	100000Hours	100000Hours
Communication distance	< 100M	< 100M	< 100M
