Novastar VX16S All-in-one LED Display Video Processor Controller

Thanks to its powerful image processing and sending capabilities, the VX16s can be widely used in applications such as stage control systems, conferences, events, exhibitions, high-end rental and fine-pitch displays.

Novastar VX16S All-in-one LED Display Video Controller Features:

·Industry-standard input connectors

− 2x 3G-SDI

− 1x HDMI 2.0

− 4x SL-DVI

·16 Ethernet output ports load up to 10,400,000 pixels.

·3 independent layers

− 1x 4K×2K main layer

− 2x 2K×1K PIPs (PIP 1 and PIP 2)

− Adjustable layer priorities

·DVI mosaic

Up to 4 DVI inputs can form an independent

input source, which is DVI Mosaic.

·Decimal frame rate supported

Supported frame rates: 23.98 Hz, 29.97 Hz,

47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz.

·3D

Supports 3D display effect on the LED screen.

The device output capacity will be halved after the 3D function is enabled.

·Personalized image scaling

Three scaling options are pixel-to-pixel, full screen and custom scaling.

·Image mosaic

Up to 4 devices can be linked to load a super large screen when used together with the video distributor.

Easy device operation and control through VCan Up to 10 presets can be saved for future use.

·EDID management

Custom EDID and standard EDID supported

·Device backup design

In backup mode, when the signal is lost or the Ethernet port fails on the primary device, the backup device will take over the task automatically.

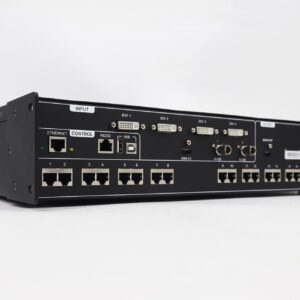

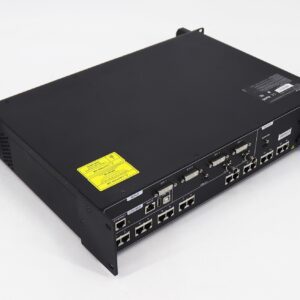

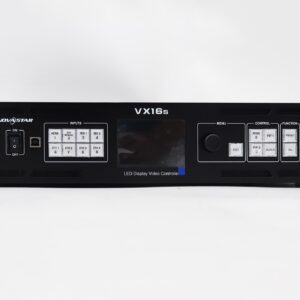

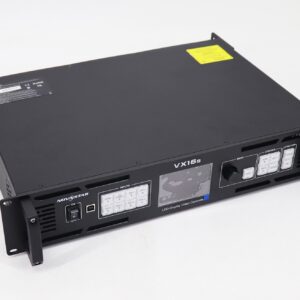

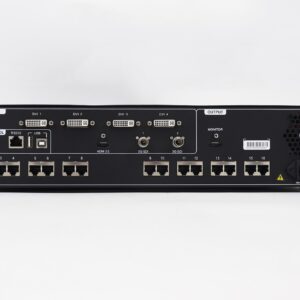

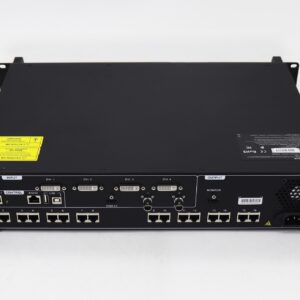

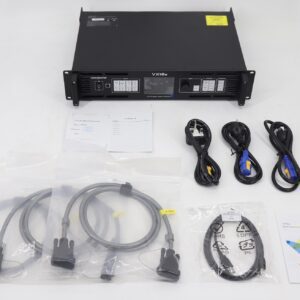

More Pictures of Novastar VX16S All-in-one LED Display Video Processor Controller:
