Novastar MCTRL4K LED Display Controller LeemanLEDscreen
$3,950.00 Original price was: $3,950.00.$3,900.00Current price is: $3,900.00.
- HDMI/DVI input; HDMI/extermal audio input;
- 1 light sensor interface;
- Resolution supported:2048×1152, 1920×1200, 2560×960;
- Resolution supported:1440×900; (12bit/10bit)
- 12bit/10bit/8bit HD video source;
- Cascading supported;
- 18bit gray scale processing and presentation;
- Video format:RGB,YCrCb4:2:2,YCrCb4:4:4;
- Standard 1U housing; independent power supply
SKU:
NOVA-MCTRL-4K
Categories: Novastar LED Control Card
Share:

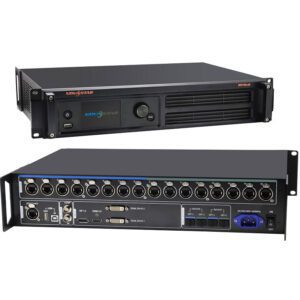

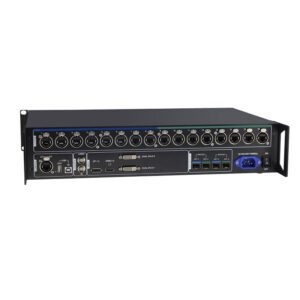

Novastar MCTRL4K LED Display Controller LeemanLEDscreen Details & Specification
Novastar MCTRL4K LED Display Controller is an independent master controller developed by NovaStar with an epoch-making significance.
| Electrical Parameters | Input voltage | AC 100 V–240 V, 50/60 Hz |
| Rated power consumption | 30 W | |
| Operating Environment | Temperature | -20°C–60°C |
| Humidity | 10% RH–90% RH, non-condensing | |
| Storage Environment | Temperature | -20°C–70°C |
| Humidity | 10% RH–90% RH, non-condensing | |
| Physical Specifications | Dimensions | 482.6 mm × 372.0 mm × 96.0 mm |
| Weight | 4.6 kg | |
| Packing Information
| Carrying case | 530 mm × 420 mm × 193 mm White cardboard box |
| Internal Box | 405 mm × 290 mm × 48 mm | |
| Accessory box | White cardboard box Accessories: 1 × power cord, 1 × Ethernet cable, 1 × USB cable, 1 × HDMI cable and 1 × DP cable | |
| Packing box | 550 mm × 440 mm × 210 mm Craft paper box | |
| Certifications | FCC, EMC, LVD, RoHS, UL&CUL, EAC, CB, IC, KC, RCM | |
- Novastar MCTRL4K Controller Specifications V1.1.0
