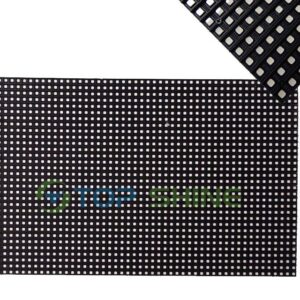

P12.5mm Outdoor SMD 200x200mm LED Module

Original price was: $17.80.Current price is: $17.00.

Lead Time: 15-21 Working Days

Pixel Pitch:12.5mm

LED Type: SMD3535

Module Size: 200*200 mm

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

SKU: LCC-P12.5-16X16-OS-1S Categories: Outdoor SMD LED Module

Description

Shipping & delivery

P12.5mm Outdoor SMD 200x200mm LED Module

Outdoor P12.5mm SMD LED Display Module Size is 200mmx200mm With16x16dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
If you want to build led screen,please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

P12.5mm Outdoor SMD 200x200mm LED Module Main Specifications:

Items	Parameter
Product Model	P12.5mm outdoor 1/1sacn LED Module
Module size	200x200mm
resolution ratio	16*16dots
Pixel pitch	12.5mm
Pixel density	6400dots/sqm
Pixel configuration	SMD 3in1
Driving method	Constant Current Driving,1/1scan
Working voltage	DC5V
Module maximum power consumption	55W/Pc
Led Lamps	SMD3535
Electrical Parameters
Frame rate	60Hz/Second
Refresh rate	≥1960HZ
Brightness in White Color (cd/m2):	5500-6500 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤450W/m2 (MAX 850)
Viewing Angle	120(Horizontal),120(Vertical)
Best Viewing Distance	12.5m-125m
Input Voltage	110V/60HZ-220V/50Hz Switchable

High Quality LEDs:

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72+ Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
