P10 LED Module Outdoor SMD 320×160 LED Panel 1/4Scan

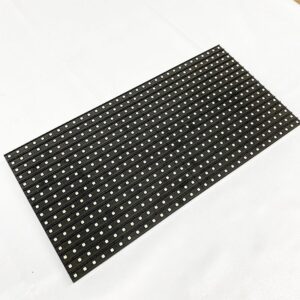

Outdoor P10mm SMD LED Display Module Size is 320mmx160mm With 32×16 dots.
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
- If you want to build led screen,please buy enough LED Modules and Spare Parts.
- Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.
P10 LED Module Outdoor 320mmx160mm 1/4Scan LED Display Module Specifications:
| Items | Parameter |
|---|---|
| Product Model | P10mm outdoor 1/4Scan LED Module |
| Module size | 320x160mm |
| resolution ratio | 32*16dots |
| Pixel pitch | 10 mm |
| Pixel density | 10000dots/sqm |
| Pixel configuration | SMD 3in1 |
| Driving method | Constant Current Driving,1/4 scan |
| Working voltage | DC5V |
| Module maximum power consumption | 55W/Pc |
| Led Lamps | SMD3535 |
Electrical Parameters |
|
| Frame rate | 60Hz/Second |
| Refresh rate | ≥1960HZ |
| Brightness in White Color (cd/m2): | 4500-5000 CD/m2 |
| Contrast ratio | ≥4000:1 |
| Life time | ≥100000 hours |
| Operating humidity | 10%-90%RH |
| Average power consumption | ≤450W/m2 (MAX 850) |
| Viewing Angle | 120(Horizontal),120(Vertical) |
| Best Viewing Distance | 10m-100m |
| Input Voltage | 110V/60HZ-220V/50Hz Switchable |
High Quality LEDs:
High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.
72+ Hours Aging
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
