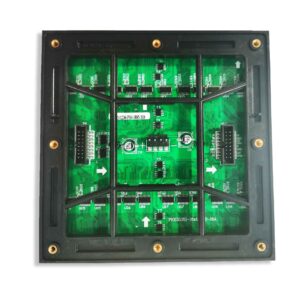

P10 Outdoor SMD 160mmx160mm LED Module

Original price was: $19.00.Current price is: $18.00.

Pixel Pitch: 10mm

LED Type: SMD3535

Module Size: 160*160 mm

Model Pixel: 16*16 Pixels

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

SKU: LCC-P10-16x16-2S Categories: Outdoor SMD LED Module

Description

Shipping & delivery

P10 Outdoor SMD 160mmx160mm LED Module

Outdoor P10mm SMD LED Display Module Size is 160mmx160mm With 16×16 dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
If you want to build led screen,please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

P10 Outdoor SMD 160mmx160mm LED Module

P10 160mmx160mm SMD Specification
LED Module	LEEMAN-P10-Outdoor-16X16-SMD
Resolution	16(W) * 16(H)
Pixel Pitch	10 mm
LED Arrangement	SMD3535
Module Size	160mmx160mm
Driver Mode	1/2 Scan
Protection Grade	IP65 Waterproof
Brightness	6500 – 6800 nits
Electricity Parameter
Working Voltage	DC 5V
Power Supply	AC 110 / 220V, 50/60Hz
Maxim Power Consumption	15 W
Density	10000 pixels/m2
Viewing Angle	120 degree (horizontal & vertical)
Viewing Distance	10m – 100m
Working Temperature	16bit
Color Processing	5000 — 9500 (choice by user)
Color Temperature(k)	≤ 1mm juncture
Whole Display Flatness	-20°C ~ +50°C
Refresh Frequency	≥1960HZ
Humidity(RH)	≤ 90 ~ 95%
Screen Lifetime	100000 hours
Warranty Time	2 Years
Certificates	CE,RoHS,UL,EMC,FCC

High Quality LEDs:

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72+ Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
