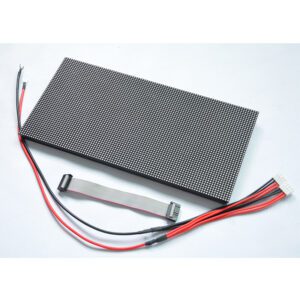

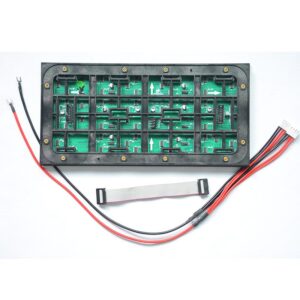

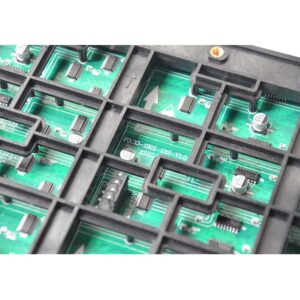

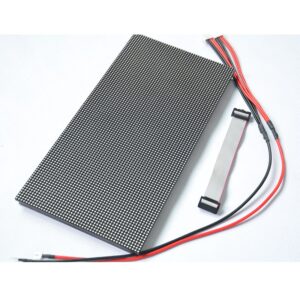

Full Color LED Module 320mmx160mm P3.33mm Outdoor SMD LED Panel
Outdoor P3.33mm SMD LED Display Module Size is 320mmx160mm With 96×48 dots.
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
- If you want to build led screen,please buy enough LED Modules and Spare Parts.
- Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.
P3.33mm Outdoor Full Color LED Module SMD Full Color LED Display Panel 320mmx160mm Specifications:
Items | Parameter |
---|---|
Product Model | P3.33mm outdoor fine pitch LED Module |
Module size | 320x160mm |
resolution ratio | 96*48dots |
Pixel pitch | 3.33 mm |
Pixel density | 90000dots/sqm |
Pixel configuration | SMD 3in1 |
Driving method | Constant Current Driving,1/12 scan |
Working voltage | DC5V |
Module maximum power consumption | 55W/Pc |
Led Lamps | SMD1921 |
Electrical Parameters |
|
Frame rate | 60Hz/Second |
Refresh rate | ≥1920HZ |
Brightness in White Color (cd/m2): | 5000-5500 CD/m2 |
Contrast ratio | ≥4000:1 |
Life time | ≥100000 hours |
Operating humidity | 10%-90%RH |
Average power consumption | ≤450W/m2 (MAX 850) |
Viewing Angle | 120(Horizontal),120(Vertical) |
Best Viewing Distance | 3m-30m |
Input Voltage | 110V/60HZ-220V/50Hz Switchable |
High Quality LEDs:
High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.
72+ Hours Aging
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
