P10 LED Module Manufacturers Outdoor Led Sign Displays Real Pixel 160mmx160mm LED Module

Original price was: $15.30.Current price is: $11.00.

Pixel Pitch: 10mm
Module Size: 160*160 mm
Model Pixel: 16*16 Pixels
LED Type: DIP 346

or
SKU: Leeman P10 LED Module Manufacturers Categories:

Share:

P10 LED Module Manufacturers Outdoor Led Sign Displays Real Pixel 160mmx160mm LED Module

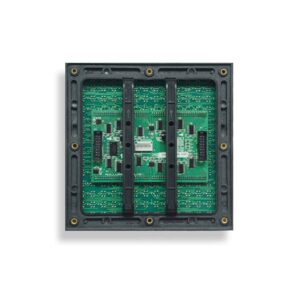

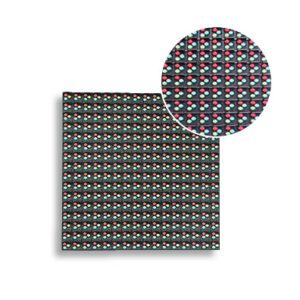

Outdoor P10mm DIP LED Display Module Size is 160mmx160mm With 16×16 dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
  • If you want to build led screen,please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

P10 LED Module Manufacturers P10 Outdoor DIP Front Led Sign Displays Real Pixel 160mmx160mm LED Module

P10  160×160 DIP Specification
LED Module Leeman-P10-Outdoor-16X16-DIP
Resolution 16(W) * 16(H)
Pixel Pitch 10 mm
LED Arrangement DIP346, 1R1G1B
Module Size 160mmx160mm
Driver Mode 1/4 Scan
Protection Grade IP65 Waterproof
Brightness 6500 – 6800 nits
Electricity Parameter
Working Voltage DC 5V
Power Supply AC 110 / 220V, 50/60Hz
Maxim Power Consumption 15 W
Density 10000 pixels/m2
Viewing Angle 120 degree (horizontal & vertical)
Viewing Distance 10m – 100m
Working Temperature 16bit
Color Processing 5000 — 9500 (choice by user)
Color Temperature(k) ≤ 1mm juncture
Whole Display Flatness -20°C ~ +50°C
Refresh Frequency ≥960HZ
Humidity(RH) ≤ 90 ~ 95%
Screen Lifetime 100000 hours
Warranty Time 2 Years
Certificates CE,RoHS

High Quality LEDs:

High-Quality 1R1G1B LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72+ Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
