P10 Outdoor Green Color LED Module 320x160mm

Original price was: $9.80.Current price is: $9.50.

P10mm 320mmx160mm Single Green Color LED Module
Pixel Pitch: 10mm
LED Type: DIP346 Green
Module Size: 320*160 mm
Model Pixel: 32*16 Pixels
Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

or
SKU: LCC-P10-32X16-Green-D Categories:

Share:

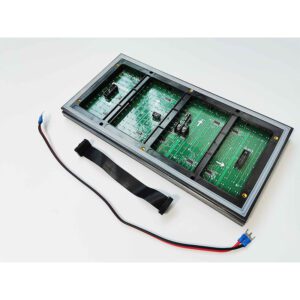

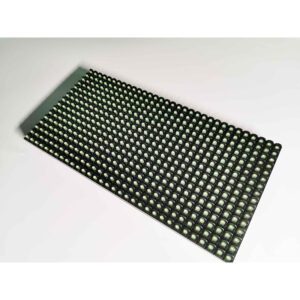

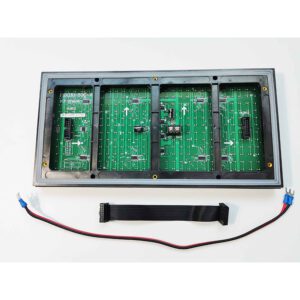

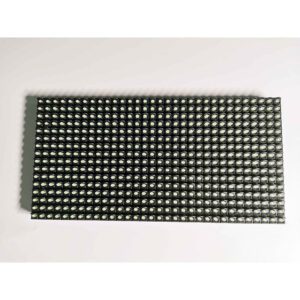

P10 Outdoor Green Color LED Module 320x160mm

Outdoor P10mm Single green color LED Display Module Size is 320mmx160mm With 32×16 dots.

P10 Outdoor Green Color LED Module 320x160mm Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
  • If you want to build led screen,please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

P10mm 320mmx160mm Single Green Color LED Module Main Specifications:

Model LEEMAN-P10-Outdoor Single-32X16
Resolution 32(W) * 16(H)
Pitch 10 mm
LED Arrangement DIP 346
Module Size 320mm×160mm
Driver Mode Constant driving 1/4 scanning
Pixel color Red/ Green/ Blue/Yellow/White
Electricity Parameter
Brightness 6500 – 6800 nits
View Angle 90-120(horizontal); 30-60(vertical)
View Distance 10 m -25m
Gray Scale 12ts input, correction with 16bits
Display Color 16.7M
Brightness Adjustment 100 levels
Density (Real) (dots/m^2) 10,000
Control mode Asynchronous or Synchronous
Operation Power AC100-240V 50-60HZ Switch-able
Maxim Power Consumption 15 W
Control System
Correction Scale Level 16bits
Frame Update Frequency 60Hz
Screen Refresh Frequency ≥1960HZ
Gamma Correction -5.0~5.0
Reliability
Operating Temp. -20-60 Celsius degree
Operating Humidity 10-95% RH
Operating Life 100,000 hours
MTBF 5000 hours
Continuous Working Time ≥48 hours
Protection Level IP54
Out of Control Pixel Rate 0.01%
Protection Semi-outdoor

High Quality LEDs:

High-Quality single color LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72+ Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
