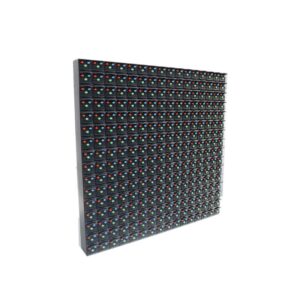

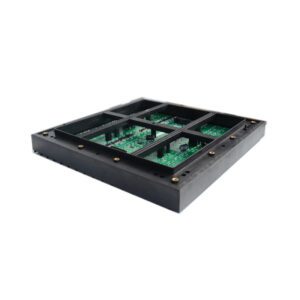

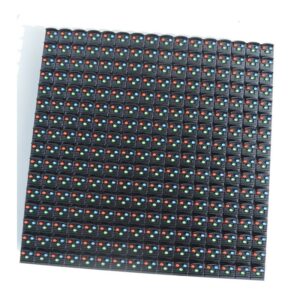

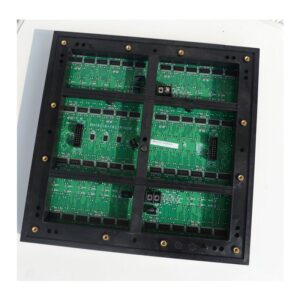

P16 Outdoor DIP LED Display 256×256 RGB LED Module brightness 8000nits

Outdoor P16mm DIP LED Display Module Size is 256mmx256mm With 16×16 dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
If you want to build led screen,please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

P16 Outdoor DIP 1R1G1B LED Display 256×256 LED Module Main Specifications:

Items	Parameter
LED Module	Leeman-P16-Outdoor-16X16-DIP
Resolution	16(W)×16(H)
Pitch	16mm
LED Arrangement	DIP346, 1R1G1B
Driver Mode	1/1 Scan
Size	256mm×256mm
Electricity Parameter
Brightness	≥7500cd/m²
View Angle	120 degree (horizontal & vertical)
View Distance	16m-160m
Gray Scale	12bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	100 levels
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	15W
Control System
Correction Scale Level	16bits
Frame Update Frequency	60Hz
Screen Refresh Frequency	≥960HZ
Gamma Correction	-5.0~5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Color Temperature	5000-9300 adjustable
Brightness Correction	dot by dot, module by module, cabinet by cabinet
Reliability
Working Temperature	-20～+60 ºC
Storage Temperature	-30～+70 ºC
Working Humidity	10%～90% RH
Lifetime	100,000 hours
MTBF	5000 hours
Continuous Operating Time	≥72 hours
Out-of-Control Pixel Rate	≤0.01%

High Quality LEDs:

High-Quality 1R1G1B LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72+ Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
