P5 Soft Flexible LED Screen Module 320x160mm P1.86 P2.5 P2 P1.56 P3

P5 Soft Flexible LED Screen Module 320x160mm Full Color

Warm Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P5 Indoor 320x160mm Full Color Soft Flexible LED Screen Module Parameter

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD2121	80-104mcd		120°	618-623nm	25℃,15mA
Green		270-338mcd		120°	515-519nm	25℃,10mA
Blue		31-39mcd		120°	465-469nm	25℃,5mA
Module Parameter
Pixel Pitch			5mm
Pixel Configuration			SMD2121
Density			40,000 pixels/㎡
Module Resolution			64pixel(L) * 32pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 9mm(D)
Driving Mode			Constant current, 1/16 duty
Electricity Parameter
Optical Ratings
Brightness			≥800 cd/㎡
Viewing Angle			160°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥5m
Gray Grade			16 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			15W
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥384Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100M (Ethernet cable);
			20KM (Optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP31
Out-of-Control Pixel Rate			≤0.01%

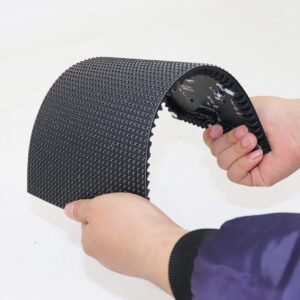

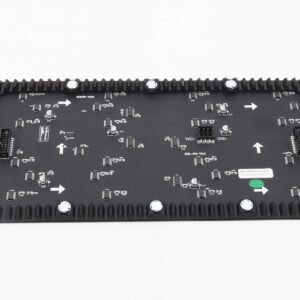

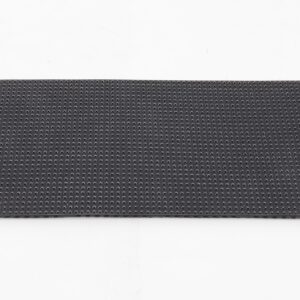

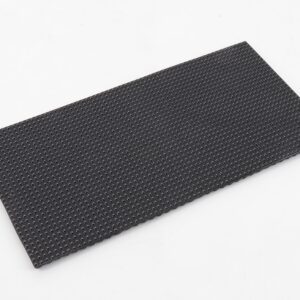

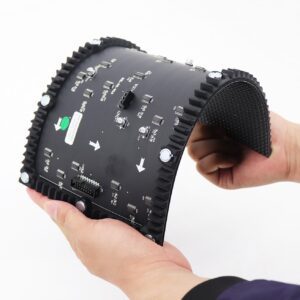

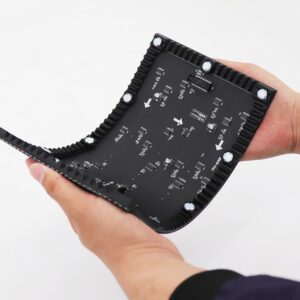

More Pictures of P5 Indoor 320x160mm Full Color Soft Flexible LED Display Panel
