P2 Flexible LED Display Module 256×128 Indoor Soft LED Screen

Warm Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P2 Indoor 256x128mm LED Screen Soft Flexible LED Module Parameter:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD1515	38-50mcd		120°/120°	618-623nm	25℃,8mA
Green		150-195mcd		120°/120°	519-524nm	25℃,5mA
Blue		19-25mcd		120°/120°	467-471nm	25℃,3mA
Module Parameter
Pixel Pitch			2mm
Pixel Configuration			SMD1515
Density			250,000pixels/㎡
Module Resolution			128pixel(L) * 64pixel(H)
Module Dimension			256mm(L) 128mm(H) 8.5mm(D)
Driving Mode			Constant current, 1/32 duty
Electricity Parameter
Optical Ratings
Brightness			≥1,000 cd/㎡
Viewing Angle			160°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥2m
Gray Grade			16 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			20 W
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥3,840Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100M (Ethernet cable);
			20KM (Optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP31
Out-of-Control Pixel Rate			≤0.01%

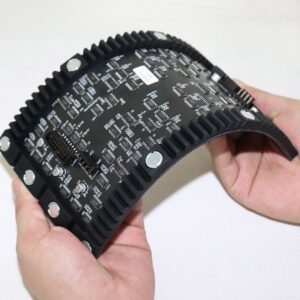

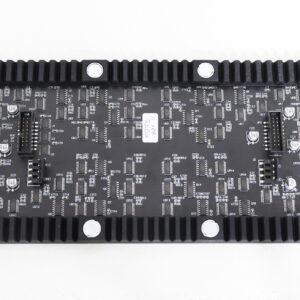

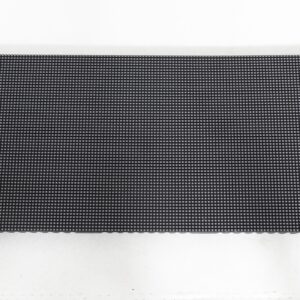

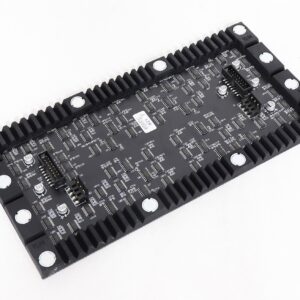

More Pictures of P2 Indoor 256x128mm LED Screen Soft Flexible LED Module:
