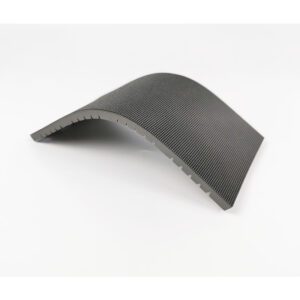

P1.579mm Flexible LED Panel Screen Display 240x120mm LED Module

P1.579mm Flexible LED Panel Screen Display 240mmx120mm Flexible Soft LED Display Module

P1.579mm Flexible Soft LED Display Module Size is 240mmx120mm With 152×76 dots.

We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
If you want to build led screen, please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

LED Module including the Data & Power Cables.
2 Years Warranty, Ship in 24 hours, Free Online Support.
LED Module Can Work With Linsn, Novastar, Colorlight, Xixun huidu LED Control Card Etc.
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

Module Specifications
1	Pixel Pitch	1.579mm
2	Pixel Configuration	SMD3in1
3	Module Resolution	152×76 pixels
4	Module Pixles	11552pixels/module
5	Module Size	240x120mm
Specifications
1	Screen Brightness	≥1000cd/m2
2	Driving Method	1/38 scan
3	Min Viewing Distance	2m
4	Max. Power Consumption	680W/m2
5	Average Power Consumption	260W/m2
6	Gray Level	14bits input, 4096 levels(212)
7	Display Color	16M
8	Frame Frequency	≥60Hz
9	Refresh Frequency	3840Hz
10	Uninterrupted Working Hours	≥72 hours
11	Screen Life-span	≥100,000 hours
12	MTBF	≥5,000 hours
13	Discrete Blind Spot Rate	<1/10000
14	Continuous Blind Spot Rate	None
15	Blind Spot Rate	<1/10000
16	Screen Plainness	<±1mm
17	Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
18	Environment Temperature & Humidity	Temperature:-20 Celsius~+60 Celsius Humidity:10%~90% RH
19	Control Mode	Synchronous display with control PC by DVI
20	Control System	DVI video card + full color control card + fiber system( optional)
21	Display Content	Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
22	Interface	Standard Ethernet
23	Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
