P1.667 LED Soft Flexible LED Module HD Indoor 240x120

P1.667 LED Soft Flexible LED Module HD Indoor 240x120mm

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P1.667 HD Indoor 240x120mm LED Soft Flexible LED Module Parameter:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD1010	10-22mcd		120°	620-625nm	25℃,5mA
Green		30-80mcd		120°	515-535nm	25℃,3mA
Blue		4.5-9.9mcd		120°	460-475nm	25℃,2mA
Module Parameter
Pixel Pitch			1.667mm
Pixel Configuration			SMD1010
Density			359,856 pixels/㎡
Module Resolution			144pixel(L) * 72pixel(H)
Module Dimension			240mm(L) 120mm(H) 8.5mm(D)
Driving Mode			Constant current, 1/36 duty
Electricity Parameter
Optical Ratings
Brightness			≥800 cd/㎡
Viewing Angle			140°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥1.6m
Gray Grade			14 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			15 W
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥3840Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable);
			20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP31
Out-of-Control Pixel Rate			≤0.01%

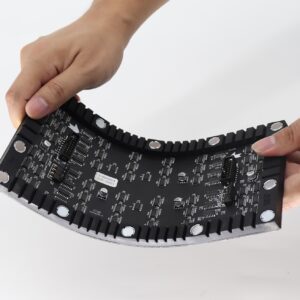

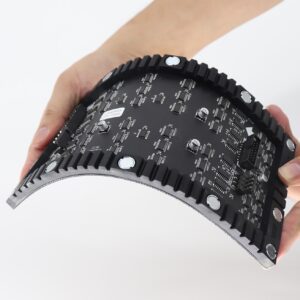

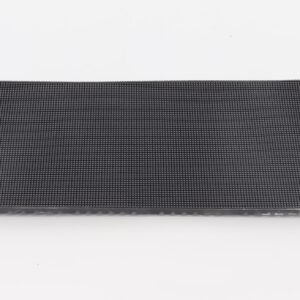

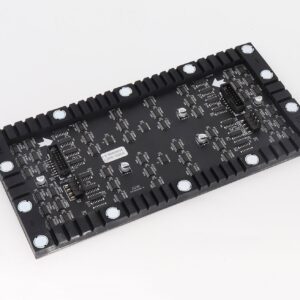

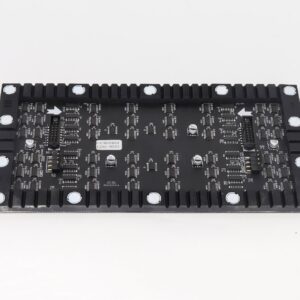

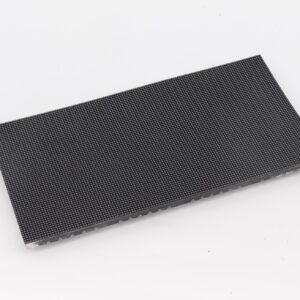

More Pictures of P1.667 LED Soft Flexible LED Module HD Indoor 240x120mm:
