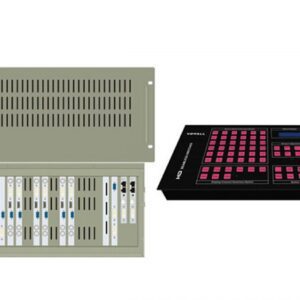

VDWALL LVS5066 HD LED Display Video Controller

NO SDI, If need SDI, add$ USD140 Per Road, can add 6 roads at most.

Features of VDWALL LVS5066 HD LED Display Video Controller:

1. A latest generation broardcast-grade video processing technology, clearer in video image details,
more distinct in image gray levels, more brilliant in colors and more vivid in scenes
2. 6 input channels with total 24 Multi-format video signals,including 12 Full HD digital inputs:
6× SDI / HD-SDI , 6×DVI / HDMI( with HDCP )
3. Numerous Seamless Switching Effects including Fade-in / Fade-out( MIX ), Clean CUT, WIPE and T-Fader.
They are all truly seamless, glitch-free switching
4. Unrestricted HD Picture-in-Picture ( PIP )
5. HD Text, Flash, Graphics & Logo Overlay

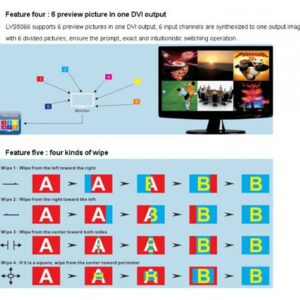

6. 6 Preview Pictures in one DVI output
7. Robust 24 / 7 operation
8. Setup & Control is very Simple

Specifications of VDWALL LVS5066 HD LED Display Video Controller:

Model / Configs	LVS5066
Input
Nums / Type	6×composite video 6×VGA（RGBHV） 6×DVI / HDMI 6×SDI（HDSDI）
Video system	PAL / NTSC
Composite Video Scope / Impedance	1V（p_p）/ 75Ω
VGA Format	PC（VESA）	≤1600×1200 @60HZ
VGA Scope / Impedance	R、G、B = 0.7 V （p_p）/ 75Ω
DVI Format	SD / HD （EIA-861B）	≤1920x1080P @60HZ
	PC（VESA）	≤1600×1200 @60HZ
HDMI Format （HDCP）	SD / HD （EIA-861B）	≤1920x1080P @60HZ
	PC（VESA）	≤1600×1200 @60HZ
SDI Format	SDI-SMPTE 259M-C	576i @50HZ 480i @60HZ
HD-SDI 3G-SDI Format	HDSDI-SMPTE 292M SMPTE 274M/296M	1080P @50HZ/60HZ 1080i @50HZ/60HZ 720P @60HZ
Input Connectors	Composite video ：BNC VGA：15pin D_Sub ( Female ) DVI：24+1 DVI_D SDI / HD-SDI ： BNC / 75Ω

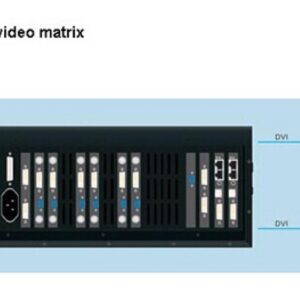

Outputs
Main Outputs	1×VGA（RGBHV） 2×DVI
Monitor Outputs	1×VGA（RGBHV） 1×DVI
VGA / DVI Format	1024× 1280× 1920×
VGA Scope / Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
Main Outputs Connectors	VGA：15pin D_Sub( Female ) DVI OUT1：24+5 DVI_I DVI OUT2：24+1 DVI_D
Monitor Outputs onnectors	VGA：15pin D_Sub( Female ) DVI： 24+5 DVI_I
Others
Control	Panel Button
Power	100-240VAC 300W 50 / 60Hz
Operating Temp	5-40 ℃
Humidity	15-85%
Size	178mm（4U）（H） ×344mm（W）×490mm（L）
Weight	12KG(N.W.)

Application VDWALL LVS5066 HD LED Display Video Controller:
Large venue display apllications such as: TV Broadcast center, Stage Entertainment & Theater , Sports Venues,
High-end meetings& Exhibitions etc.
