Transparent LED Adhesive Film Screen P6.5 P8 P10 P15 P20

Original price was: $374.18.Current price is: $307.26.

Transparent LED Adhesive Film Screen P6.5 P8 P10 P15 P20
P8 Bendable Led Screen Stable performance, support two-way Drive drive-in LED,When a single point of failure, the backup data signal starts automatically, seamless switching, without affecting the display effect.

or
SKU: Leeman-Transparent LED Adhesive Film Screen Categories:

Share:

Transparent LED Adhesive Film Screen P6.5 P8 P10 P15 P20

P6.5 Adhesive Led Transparent Screen Product parameter table

 Module size (mm)  1000*400  Peak power  600w/㎡
 LED light  NationStar SMD1515  Average power  200w/㎡
 Pixel composition  R1G1B1  Work environment  Temperature -20-55
Humidity10-90%
 Pixel spacing (mm)  8*8  Weight  1.3kg
 Module pixel  125*50=6250  Thickness  2.5mm
 Pixel/㎡  25600  Drive mode  static state
 Brightness  2000/4000  Control system  Nova/Colorlight
 Permeability  92%  Typical value of life  100000H
 Angle of view °  160  Grayscale level  16bit
 input voltage  AC110-240V50/60Hz  Refresh rate  3840Hz

Flexible Transparent Led Film Screen Breakpoint continuation

Stable performance, support two-way Drive drive-in LED, When a single point of failure, the backup data signal starts automatically, seamless switching, without affecting the display effect.

Transparent LED Film Display  Screen High reliability

The fault lamp beads should be kept off. If the connection is abnormal (signal, power supply, ground) inside the chip, the lamp beads will be extinguished to avoid the phenomenon of steady on and random flashing. The lamp bead life is more than 100,000 hours

Transparent LED Adhesive Film Screen High gray scale display (true 16bit)

RGB channel adopts 32-level current linear regulation, and maintains true 16-bit grayscale display under any current, which is applicable to the consistency of indoor,semi-outdoor and outdoor current requirements

No steel structure is required,just stick the thin screen slightly and connect the power signal

Self-developed glue filling process (the screen body with its own viscosity can be directly attached to the alass surface, with strong colloid adsorption, and the viscosity will also increase with the passage of time due to the inherent characteristics of the colloid)

Installation diagram and wiring diagram

(same as asynchronous configuration)

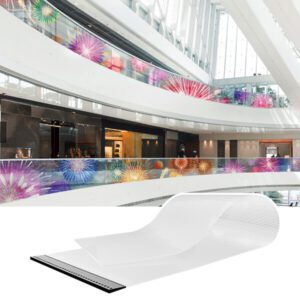

led transparent ultra soft and light adhesive film display High transmittance

Use the integrated MiniLED lamp beads to improve its own permeability

Use invisible grid circuit to improve its permeability

Flexible led transparent film screen Patented products

Self-developed chip puts the chip inside the LED beads, simplifying the circuit design and ensuring extremely high permeability.

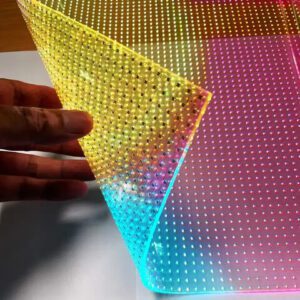

Flexibility

Flexible design: Made of flexible materialsit can be flexibly bent and curved with a minimum diameter of 6cm.

adapting to various curved shapes, such as cylindrical, arc, etcthis gives greater flexibility in design and installation.
