P3.076 P3.33 Outdoor Rental LED Screen Display Module 640x640

P3.076 P3.33 Outdoor Rental LED Screen Display 640X640mm

Notice before order:

1) Parts included : Waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P3.076 640X640mm Outdoor Event Rental LED Screen Display 960×960 Features:

1) Slim cabinet, only 80mm thick.

2) Light weight, only 25KG per pcs of 640x640mm outdoor cabinet.

3) Non-gaps between cabinets, due to accurate-made die-cast aluminum cabinet.

4) Fast lock design, good for rental hanging use.

5) IP65 for both front side and IP54 for rear side.

P3.076 P3.33 Outdoor Rental LED Screen Display 640X640mm Applications:

Outdoor rental LED display

Outdoor rental led display screen

P3.076 640X640mm Outdoor Event Rental LED Screen Display Parameters:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD1415	48mcd		120°	622nm	25℃,8mA
Green		155mcd		120°	526nm	25℃,5mA
Blue		20mcd		120°	470nm	25℃,3mA
Module Photo
Module Parameter
Pixel Pitch			3.076mm
Pixel Configuration			SMD1415
Density			105,688 pixels/㎡
Module Resolution			104pixel(L) * 52pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 18mm(D)
Driving Mode			Constant current, 1/13 duty
LED Cabinet
Module Quantity in a Cabinet			2(L) *4(H)
Cabinet Dimension			640（L）* 640（H）* 90(D)mm
Cabinet Resolution			208(L) * 208(H)
Cabinet Material			Die-Cast Aluminum
Cabinet Weight			≈12.5KG
Electricity Parameter
Optical Ratings
Brightness			≥6,000 cd/㎡
Viewing Angle			160°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥3m
Gray Grade			16 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Operation Power			AC100-240V 50-60Hz Switchable
Max. Power Consumption			786 W/㎡
Avg. Power Consumption			262 W/㎡
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥3840Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable);
			20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP65(front), IP54(rear)
Out-of-Control Pixel Rate			≤0.01%

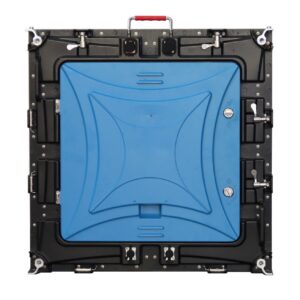

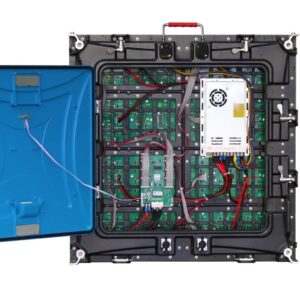

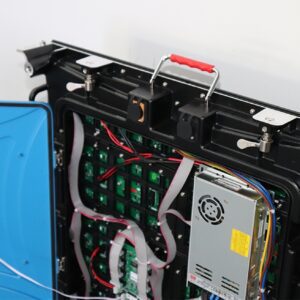

More Pictures of P3.076 P3.33 Outdoor LED Display 640X640mm:
