P6.67 Outdoor Digital Display LED Billboards Event Rental LED Screen 640X640mm Tile
Notice before order:

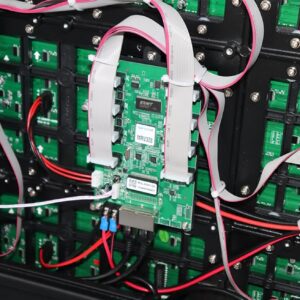

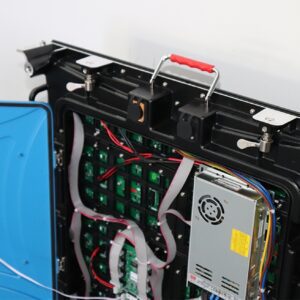

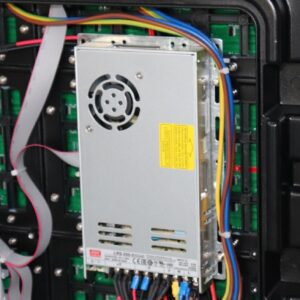

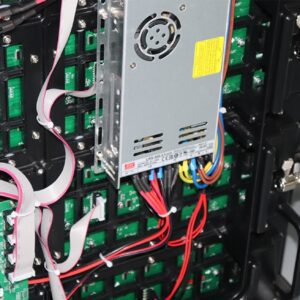

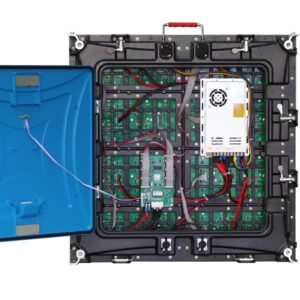

1) Parts included: waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

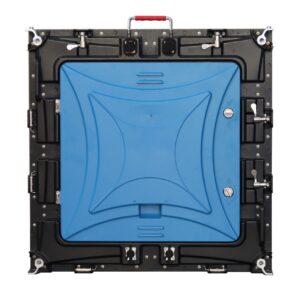

P6.67 Outdoor Event Rental LED Screen 640X640mm Tile Features:
1) Slim cabinet, only 80mm thick.
2) Light weight, only 14.5KG per pcs of 640x640mm outdoor cabinet.
3) Non-gaps between cabinets, due to accurate-made die-cast aluminum cabinet.
4) Fast lock design, good for rental hanging use.
5) IP65 for both front side and IP54 for rear side.
P6.67 Outdoor Event Rental LED Screen 640X640mm Tile Applications:
Outdoor rental LED display
Outdoor rental led display screen
P6.67 Outdoor Digital Display LED Billboards Event Rental LED Screen 640X640mm Tile Parameters:
LED Lamp Specification |
||||||
Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
Red |
SMD3535 |
800-1100mcd |
120° |
620-625nm |
25℃,20mA |
|
Green |
SMD3535 |
1600-2250mcd |
120° |
515-530nm |
25℃,20mA |
|
Blue |
SMD3535 |
350-500mcd |
120° |
465-475nm |
25℃,20mA |
|
Module Parameter |
||||||
Pixel Pitch | 6.67mm | |||||
Pixel Configuration | SMD3535 | |||||
Density | 22,500 pixels/㎡ | |||||
Module Resolution | 48pixel(L) * 24pixel(H) | |||||
Module Dimension | 320mm(L) * 160mm(H) * 25mm(D) | |||||
Driving Mode | Constant current, 1/6 duty | |||||
Module Mask | Pure black mask—high contrast screen | |||||
LED Cabinet |
||||||
Module Quantity in a Cabinet | 2(L) * 4(H) | |||||
Cabinet Dimension | 640(L)* 640(H)* 80(D)mm | |||||
Cabinet Resolution | 64(L) * 64(H) | |||||
Cabinet Material | Die-Cast Aluminum | |||||
Cabinet Weight | ≈14.5KG | |||||
Electricity Parameter |
||||||
Optical Ratings | ||||||
Brightness | ≥6,500 cd/㎡ | |||||
Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
Best Viewing Distance | ≥6m | |||||
Gray Grade | 14 bits | |||||
Display Color | 4.4 trillion Colors | |||||
Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
Operation Power | AC100-240V 50-60Hz Switchable | |||||
Max. Power Consumption | 585 W/㎡ | |||||
Avg. Power Consumption | 195 W/㎡ | |||||
Control System | ||||||
Frame Frequency | ≥60Hz | |||||
Refresh Frequency | ≥1,920Hz | |||||
Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
Control Distance | 100m(Ethernet cable);
20KM(optical fiber cable) |
|||||
Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
Color Temperature | 5000—9300 adjustable | |||||
Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
Reliability | ||||||
Working Temperature | -20~+60 ºC | |||||
Storage Temperature | -30~+70 ºC | |||||
Working Humidity | 10%~90% RH | |||||
Lifetime | 100,000 hours | |||||
MTBF | 5000 hours | |||||
Continuous Operating Time | ≥72 hours | |||||
Protection Grade | IP65(front), IP54(rear) | |||||
Out-of-Control Pixel Rate | ≤0.01% |
