Foldable Mirror Poster LED Display | P2 Mirror Poster LED Display

P2.5 Mirror Poster LED Display 1920×640

Notice before order:

1) Parts included : High-quality cabinets, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P2.5 Indoor Front Service Multi-functional Video Poster LED Screen Display Features:

Indoor multi-function poster screen can be carried out Single Poster Screens Can Be Used independently.Multiple single poster screens can be combined into a larger screen quickly.

4 wheels are located at the bottom of the multi-function poster screen bracket, easy to move.

The indoor multi-function poster screen can easily carry out pre-maintenance of the power supply, receiver card, hub card and cable by the vacuum suction tool, which is convenient, fast and simple to operate.

The indoor multi-function poster screen bracket can be easily adjusted from 80 degrees to 90 degrees, and the angle can be adjusted arbitrarily to meet various viewing angle requirements.

Foldable LED Poster Display Screen – Ultra Portable Digital Display Solution from LeemanLED
-Patented product, exclusive technology
-Supports seamless splicing of multiple screens to form a large screen
-Double sided and Triple-Foldable display simultaneous content
-Plug and play with battery styles design
-Support synchronous and asynchronous playback:
-Convenient mobile control APP(WIFI + USB + LAN + 4G)
-Durable Waterproof GOB LED Display module
-With directional wheels easy to fold and easy to transport.

P2.5 Mirror Poster LED Display 1920×640 Parameter:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD2121	80-104mcd		120°	618-623nm	25℃,15mA
Green		270-338mcd		120°	515-519nm	25℃,10mA
Blue		31-39mcd		120°	465-469nm	25℃,5mA
Module Parameter
Pixel Pitch			2.5mm
Pixel Configuration			SMD2121
Density			160,000pixels/㎡
Module Resolution			128pixel(L) *64pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 18mm(D)
Driving Mode			Constant current, 1/32 duty
LED Cabinet
Module Quantity in a Cabinet			2(L) *3(H)
Cabinet Dimension			640（L）480（H） 90(D)mm
Cabinet Resolution			256(L) * 192(H)
Cabinet Material			Die-cast aluminum
Cabinet Weight			≈8KG
Poster Screen
Cabinet Quantity of Whole the Screen			1(L) *4(H)
Display Size			640 (L)*1920(H)mm
Screen Dimension (Bracket included)			650(L)640(W) 2040(H)mm
Screen Resolution			256(L) * 768(H)
Screen Weight			≈43KG
Adjustable Angle of Bracket			From 80° to 90°
Packaging
Packing Method			Cabinets, structure and all parts are packed into one case
Packing Box Style			Flight case with wheels
Packing Box Dimension			720（L）660(W)780（H）mm
Total Volume			≈0.38CBM
Gross Weight			≈75KG
Electricity Parameter
Optical Ratings
Brightness			≥1,000 cd/㎡
Viewing Angle			120°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥2.5m
Gray Level			14 bits
Display Color			4.4 trillion Colors
Brightness Adjustment			100 grades by software or automatically by sensor
Operation Power			AC100-240V 50-60Hz Switchable
Max. Power Consumption			457 W/㎡
Avg. Power Consumption			153 W/㎡
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥1,920Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			50m(WIFI); 100M (Ethernet cable); 20KM (Optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～ 60 ºC
Storage Temperature			-30～ 70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP31
Out-of-Control Pixel Rate			≤0.01%

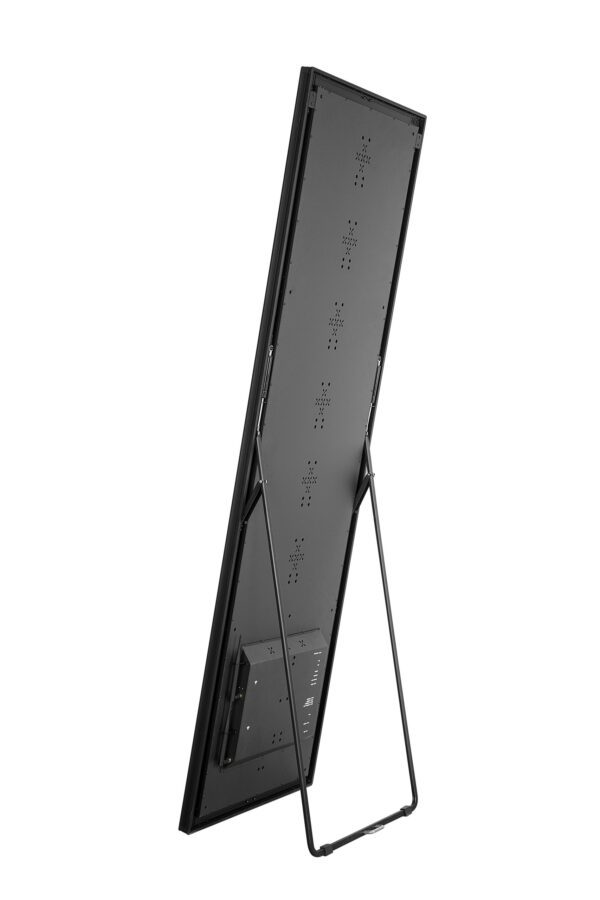

More Pictures of P2.5 Indoor Front Service Multi-functional Video Poster LED Screen Display:
