P2.5 Mirror Poster LED Display 1920×640

Original price was: $667.00.Current price is: $596.21.

P2.5 Indoor Front Service Multi-functional Video Poster LED Screen Display can easily carry out pre-maintenance of the power supply, receiver card, hub card and cable by the vacuum suction tool, which is convenient, fast and simple to operate.

or
SKU: P2.5-Indoor-SMD2121-128x64-L640xH1920 Categories:

Share:

P2.5 Mirror Poster LED Display 1920×640

Notice before order:

1) Parts included : High-quality cabinets, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P2.5 Indoor Front Service Multi-functional Video Poster LED Screen Display Features:

Indoor multi-function poster screen can be carried out Single Poster Screens Can Be Used independently.Multiple single poster screens can be combined into a larger screen quickly.
4 wheels are located at the bottom of the multi-function poster screen bracket, easy to move.
The indoor multi-function poster screen can easily carry out pre-maintenance of the power supply, receiver card, hub card and cable by the vacuum suction tool, which is convenient, fast and simple to operate.
The indoor multi-function poster screen bracket can be easily adjusted from 80 degrees to 90 degrees, and the angle can be adjusted arbitrarily to meet various viewing angle requirements.

P2.5 Mirror Poster LED Display 1920×640 Parameter:

LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red SMD2121 80-104mcd 120° 618-623nm 25℃,15mA
Green 270-338mcd 120° 515-519nm 25℃,10mA
Blue 31-39mcd 120° 465-469nm 25℃,5mA
Module Parameter
Pixel Pitch 2.5mm
Pixel Configuration SMD2121
Density 160,000pixels/㎡
Module Resolution 128pixel(L) *64pixel(H)
Module Dimension 320mm(L) * 160mm(H) * 18mm(D)
Driving Mode Constant current, 1/32 duty
LED Cabinet
Module Quantity in a Cabinet 2(L) *3(H)
Cabinet Dimension 640(L)*480(H)* 90(D)mm
Cabinet Resolution 256(L) * 192(H)
Cabinet Material Die-cast aluminum
Cabinet Weight ≈8KG
Poster Screen
Cabinet Quantity of Whole the Screen 1(L) *4(H)
Display Size 640 (L)*1920(H)mm
Screen Dimension (Bracket included) 650(L)*640(W)* 2040(H)mm
Screen Resolution 256(L) * 768(H)
Screen Weight ≈43KG
Adjustable Angle of Bracket From 80° to 90°
Packaging
Packing Method Cabinets, structure and all parts are packed into one case
Packing Box Style Flight case with wheels
Packing Box Dimension 720(L)*660(W)*780(H)mm
Total Volume ≈0.38CBM
Gross Weight ≈75KG
Electricity Parameter
Optical Ratings
Brightness ≥1,000 cd/㎡
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥2.5m
Gray Level 14 bits
Display Color 4.4 trillion Colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power AC100-240V 50-60Hz Switchable
Max. Power Consumption 457 W/㎡
Avg. Power Consumption 153 W/㎡
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 50m(WIFI); 100M (Ethernet cable); 20KM (Optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~ 60 ºC
Storage Temperature -30~ 70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP31
Out-of-Control Pixel Rate ≤0.01%

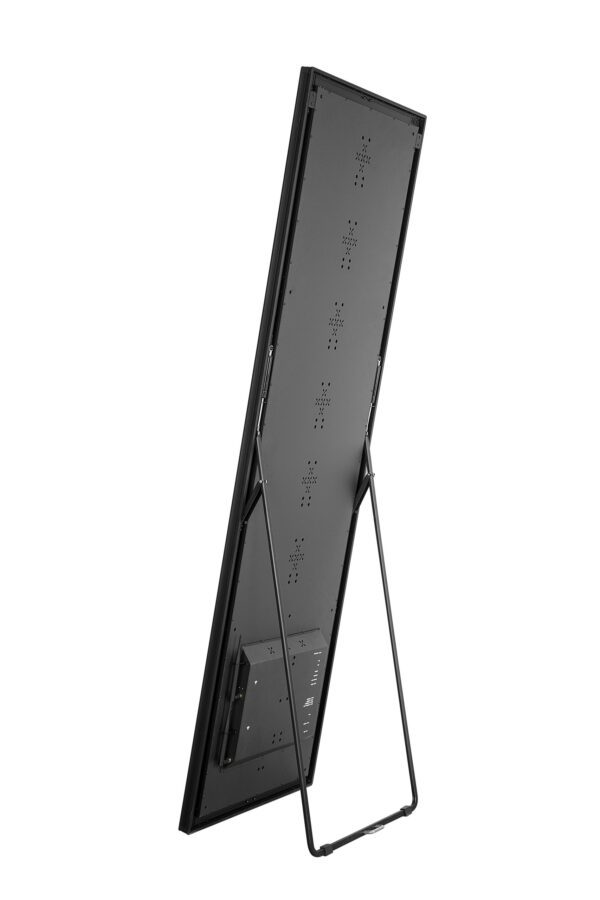

More Pictures of P2.5 Indoor Front Service Multi-functional Video Poster LED Screen Display:

Indoor Front Service Multi-functional Video Poster LED Screen

Indoor Front Service Multi-functional Video Poster LED Screen

Indoor Front Service Multi-functional Video Poster LED Screen

Indoor Front Service Multi-functional Video Poster LED Screen

Indoor Front Service Multi-functional Video Poster LED Screen

Indoor Front Service Multi-functional Video Poster LED Screen

Indoor Front Service Multi-functional Video Poster LED Screen

Indoor Front Service Multi-functional Video Poster LED Screen

Indoor Front Service Multi-functional Video Poster LED Screen

Indoor Front Service Multi-functional Video Poster LED Screen

Indoor Front Service Multi-functional Video Poster LED Screen

Indoor Front Service Multi-functional Video Poster LED Screen
