Novastar CVT320 Single-Mode Op...
$135.00 Original price was: $135.00.$132.00Current price is: $132.00.
Novastar Sending Card MSD300 S...
$114.00 Original price was: $114.00.$111.00Current price is: $111.00.
Sale

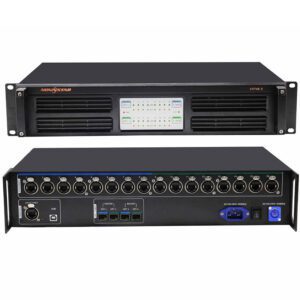

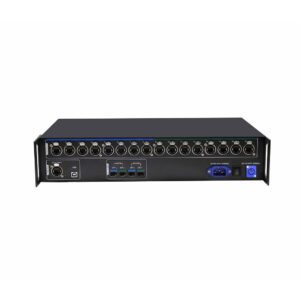

Novastar CVT4K-S Fiber Converter Accessories NovaStar Tech
$2,389.00 Original price was: $2,389.00.$2,356.00Current price is: $2,356.00.
- 16-channel Neutrik Ethernet inputs and outputs.
- 4-channel optical fiber inputs/outputs.
- Dual-power redundancy backup
- Two types of power interfaces (3-pin power socket and Power CON)
- USB and Ethernet control interfaces
SKU:
NOVA-CVT4K-S
Categories: Novastar LED Control Card
Share:
Novastar CVT4K-S Fiber Converter Accessories NovaStar Tech Specification
- CVT4K-S fiber converter enables the signal conversion between optical fiber and twisted pair cables. It allows long-distance signal transmission that is stable and not be easily interfered. Being easy to use, CVT4K-S makes it convenient to connect terminal devices as well as simpler for onsite connections.
- 16-channel Neutrik Ethernet inputs and outputs.
- 4-channel optical fiber inputs/outputs. Two of them are master input/output channels and the other two are backups.
- With dual-power redundancy backup inside for more stability and reliability.
- Two types of power interfaces (3-pin power socket and Power CON) are supported to meet different needs of customers.
- With various indicator lights on the front panel, each status can be showed clearly.
- With USB and Ethernet control interfaces making it more flexible and much easier to connect main control computers
Novastar CVT4K-S Fiber Converter Accessories NovaStar Tech
| Electrical specifications | Input voltage | AC 100V 240V |
| Rated power consumption | 10W | |
| Working environment
|
Temperature | -20℃ +60℃ |
| Humidity | 10%RH 90%RH | |
| Store environment | Temperature | -20℃ +70℃ |
| Physical specifications | Size | 500.0mm × 386.0mm × 96.0mm |
| Net weight | 4.6kg | |
|
Package information |
Suitcase | 530.0mm × 193.0mm × 420.0mm, White cardboard boxes |
|
Accessories box |
405.0mm × 290.0mm × 48.0mm, White cardboard boxes
Accessories: 1 ×Power Cable, 1 ×Net Cable, 1 × USB Cable, 10 ×Screws, 1 × Certificate of quality |
|
| Outer box | 550.0mm × 440.0mm × 210.0mm, Kraft-paper box | |
| Certification | CE FCC UL&CUL EAC CB IC | |
Be the first to review “Novastar CVT4K-S Fiber Converter Accessories NovaStar Tech” Cancel reply
