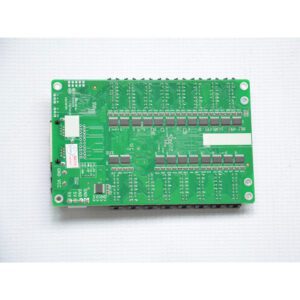

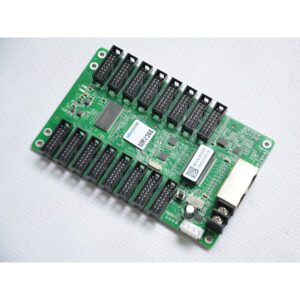

Novastar MRV366 LED Receiver Card Leeman LED Card System

Original price was: $18.00.Current price is: $17.50.

Loads Capacity: 512×256 pixels.
3D function
Mapping function
Temperature and voltage monitoring
Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

SKU: NOVA-MRV366 Category: Novastar LED Control Card

Novastar MRV366 LED Receiver Card Leeman LED Card System Details

Novastar MRV366 LED Receiver Card is a universal receiving card , with a maximum load capacity of 512×256 pixels (8bit)/256×256 pixels (10bit/12bit).

The product photos in this article are for reference only, please refer to the actual purchased products

Electrical specifications	Input voltage	V DC 3.3V ~5.0
	Rated Current	0.5 A
	Rated power consumption	2.5 W
Working environment	Temperature	-20℃～+70℃
Working environment	Humidity	10 RH ~90 RH, no condensation
Storage environment	Temperature	-25℃～+125℃
Storage environment	Humidity	0% RH ~95% RH, No condensation
Physical specifications	Size	145.6 mm×91.5 mm×17.2 mm
	Net Weight	100.1 g
	Box size	650.0 mm×500.0 mm×200.0 mm
Certification information	Has passed RoHS 、EMC Class A certification
