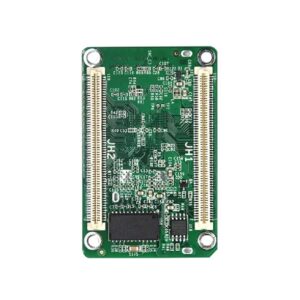

Novastar A7S LED Receiving Card Small Size High-end Large LED Screen

Original price was: $19.00.Current price is: $18.00.

Novastar A7S Small Size High-end Large LED Screen Receiving Card is a high-end receiving card developed by NovaStar, featuring small size and large loading capacity with a single card loading up to 512×256 pixels (PWM IC). It supports up to 32 parallel data groups and 128 serial data groups.

SKU: Novastar-A7S Categories: Novastar LED Control Card

Description

Shipping & delivery

Novastar A7S LED Receiving Card Small Size High-end Large LED Screen is a high-end receiving card developed by NovaStar, featuring small size and large loading capacity with a single card loading up to 512×256 pixels (PWM IC). It supports up to 32 parallel data groups and 128 serial data groups.

Software and hardware designs of the A7s concern the user deployment as well as operating and maintenance scenarios, enabling easier deployment, more stable operating and more efficient maintenance.

Novastar A7S Small Size High-end Large LED Screen Receiving Card Features:

Support for LVDS transmission (Supported by dedicated firmware program).

Support for smart module (Supported by dedicated firmware program).

Support for quick seam correction.

Support for 3D function.

Support for auto module calibration.

Support for Mapping function.

Support for pre-stored image setting of the receiving card.

Support for module Flash management.

Supports monitoring voltage and temperature of itself without using other peripherals.

Support for monitoring of Ethernet cable communication status.

Support for 5-pin LCD module.

Support for image rotation in 90° increments.

Novastar A7S LED Receiving Card Small Size High-end Large LED Screen Parameter

Maximum Loading Capacity	512×256 pixels (PWM IC) 384×256 pixels (Common IC)
Electrical Parameters	Input voltage	DC 3.3 V–5.5 V
	Rated current	0.5 A
	Rated power consumption	2.5 W
Operating Environment	Temperature	-20°C–+70°C
	Humidity	10% RH–90% RH, non-condensing
Storage Environment	Temperature	-25°C–+125°C
Packing Information	Packing specifications	Each card is shipped with an antistatic bag and anti-collision foam. Each box contains 40 cards.
	Packing box dimensions	378.0 mm × 190.0 mm × 120.0 mm
Dimensions	70.0 mm × 45.0 mm × 7.3 mm
Net Weight	17.3 g
Certifications	RoHS
	EMC Class B
