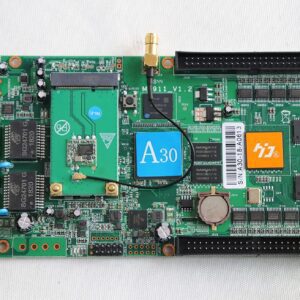

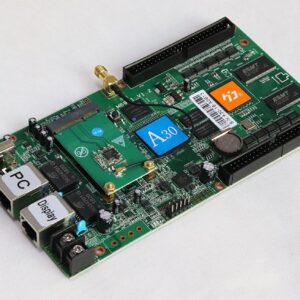

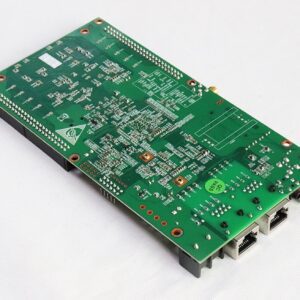

Huidu A30 Large LED Display Sign Asynchronous Controller Card WIFI 4G

Huidu A30 Large LED Display Sign Asynchronous Controller Card Features

1.Support Indoor & outdoor full-color & single/dual color module &Virtual module

2.Support Video,Animation, Graphics,Images,Text, etc.

3.Support 0~65536 gray level

4.U-disk to infinitely expand the memory storage , U-disk plug-and-play

5.Support Standard two-track stereo output

6.No need set IP, HD-A30/ A30+ could be identified by controller ID automatically

7.Support network cluster management and Internet/3G remote management.

Huidu A30 Large LED Display Sign Asynchronous Controller Card Features Details Parameter

Type	Indoor & outdoor full-color & single/dual color module &Virtual module SupportMBI5041/5042,MBI5050, MY9221.MY9268 etc and PWM
Scan mode	Support 1-32 scan randomly and static
Sending card Control range	HD-A30: 1024W512H HD-A30+:1024W512 2048W256H 512W1024H
Receiving card Range(1PCS)	HD-R500: 256W128H HD-R501: 256W192H Usually 1PCS Cabinet use 1PCS Receiving card
Gray Scale	0-65536
Video format	AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Image format	BMP, GIF, JPG, JPEG, PNG, GIF,PBM, PGM,PPM,XPM,XBM etc.
Text	Text and Image being edited directly. Document like Word, Excel, PPT,PPTX; txt, rtf, html etc. can be edited as well after importing directly.
Time	Classic Analog clock, digital clock and various of clock with image background
Audio output	Double track stereo audio output
Memory	4G Flash memory ; Indefinite expanding of U-disk memory.
Communication	10/100M/1000M RJ45 Ethernet; 3G;Internet;LAN
Working Voltage	4.5-5.5V
Working Temperature	-20℃-80℃
Port	IN:5V Power x1, 10/100M/1000M RJ45 x1, USB 2.0 x1,Testing button x1 OUT:1000M RJ45 X1,Audio x1, 50PIN Port x 2
Software	HDPlayer

Huidu A30 Large LED Display Sign Asynchronous Controller Card Features Model Selection Reference

Model	Control range Pixel （Width*Height）	3G sub model
HD-A30	1024W*512H ( Itself also can be working as 1PCS receiving card )	HD-A30W（WCDMA） HD-A30C（CDMA 2000）
HD-A30+	1024W512H / 2048W256H /512W*1024H (It self can’t work as receiving card) Support Linsn /color light Receiving card	HD-A30+W（WCDMA） HD-A30+C（CDMA 2000）
HD-R500	Suggest：256W*128H	/
HD-R501	Suggest：256W*192H	/
