HUIDU HD-A601 Dual Mode LED Co...
$145.00 Original price was: $145.00.$140.00Current price is: $140.00.
HD-A30 Async Full Color LED Co...
$113.00 Original price was: $113.00.$110.00Current price is: $110.00.
Sale
HUIDU HD-R5018 LED Receiving Card
$14.00 Original price was: $14.00.$13.60Current price is: $13.60.
HUIDU HD-R5018 LED Receiving Card, HD-R5018 Work With HD-A601 HD-A602 HD-A603 HD-A30 HD-A30+ HD-C10 HD-C30 HD-T901, 8*HUB75E
Huidu Conventional LED Receiving Card HD-R500S / HD-R501 / HD-R508T / HD-R512S / HD-R516T / HD-R612 / HD-R512T
SKU:
Huidu-HD-R5018
Categories: Huidu LED Control Card
Share:

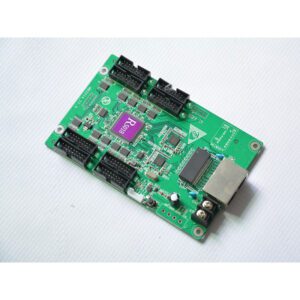

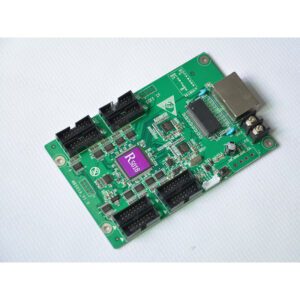

HUIDU HD-R5018 LED Receiving Card
8*HUB75E 1/32 Scan Full Color LED Display Screen Receiving Card Work With HD A601 A602 A603 A30 A30+ C10 C30. R5018 free hub board design, full compatible with the r500 function, equivalent to R500 plus HUB75E
Descriptions
1: Type: Indoor & outdoor full-color & single/dual color module.
2: Scan mode: Static 1-32 scan randomly.
3: Support areas: 256W*128H (Sugest). Max: 190,000 points, 1024*192
4: Receiving cards connected ways: Receiving card set sequence randomly, it could recognize by automatically or by hand.
5: Gray scale: 0-65536.
6: Smart set: Smart set by few simple steps, through display routine setting, it could suit almost different PCB routine.
7: Play contents: Play video、animation、picture、text、excel、PPT、time、counter etc.
8: Test functions: It have self test button, could test modes of red、green、blue、white、gray、oblique line、grid、spots etc.
9: Time on/time off: Time on /off display by defined and time on/off display by computer.
11: Working voltage: DC5V (range 4.5~5.5V).
12: Temperature: -30°C~70°C.
