Taiwan MeanWell Power Source MW XLG-200-H-A LED Driver Power Supply

Taiwan MeanWell Power Source MW XLG-200-H-A LED Driver Power Supply

XLG-200 series are 200W LED AC/DC drivers with constant power mode.
The operating voltage range of XLG-200 is 100~305VAC, and models with different rated currents are available, ranging from 700mA to 16A.
Thanks to the high efficiency up to 94% and the fanless design, the entire series can run -40℃~+90℃ The shell temperature is free air convection. Metal housing and IP67 entrance design.
The degree of protection allows the series to be suitable for indoor and outdoor applications. In addition, the innovative environmental adaptability enables the series to reliably illuminate LEDs, suitable for almost all possible environments for various applications.
XLG-200 This series complies with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations.

Taiwan Mean Well MW XLG-200-H-A LED Driver Power Supply Features:

· Wide input range 100~305V AC (Class l)
· Full power output at 70~100% Constant power mode operation
· Metal case with IP67 , suitable for outdoor application
· Surge protection with 6KV/4KV (10KV/6KV optional)
· 3 in 1 dimming function ( Dim to off and Isolation design )
· India ( EESL ) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
· Protection functions : OVP / SCP / OCP / OTP
· Life time > 50,000 hrs . and 5 years warranty

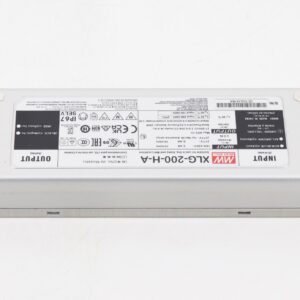

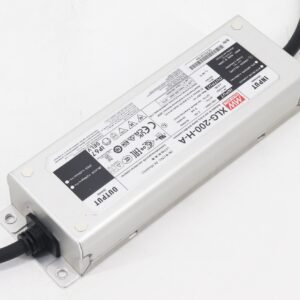

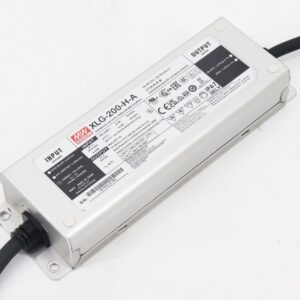

More Pictures of Taiwan Mean Well MW XLG-200-H-A LED Driver Power Supply
