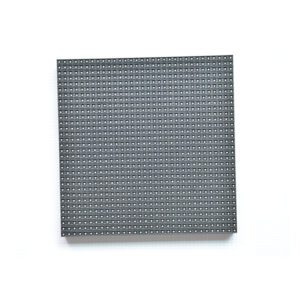

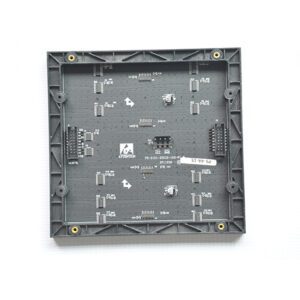

P5 SMD Full Color LED Display Module Indoor SMD3528 160mmx160mm 1/16 Scan LED Module

Original price was: $16.50.Current price is: $15.00.

Pixel Pitch:5mm

LED Type: SMD3528

Module Size: 160*160 mm

Model Pixel: 32*32 Pixels

or
Categories:

Share:

P5 SMD Full Color LED Display Module Indoor SMD3528 160mmx160mm 1/16 Scan LED Module

Indoor P5mm SMD LED Display Module Size is 160mmx160mm With 32×32 dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
  • If you want to build led screen, please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

Remark:

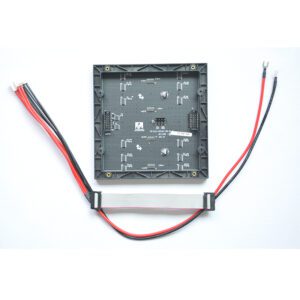

  • LED Module including the Data & Power Cables.
  • 2 Years Warranty, Ship in 24 hours, Free Online Support.
  • LED Module Can Work With Linsn, Novastar, Colorlight, Xixun huidu LED Control Card Etc.
  • 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

P5 SMD Full Color LED Display Module Indoor SMD3528 160mmx160mm 1/16 Scan LED Module Main Specifications:

Items Parameter
Product Model P5mm Indoor LED Module
Module size 160mmx160mm
resolution ratio 32*32dots
Pixel pitch 5 mm
Pixel configuration RGB 3in1
Driving method Constant Current Driving,1/16 scan
Working voltage DC5V
Module maximum power consumption 55W/Pc
Led Lamps SMD3528

Electrical Parameters

Frame rate 60Hz/Second
Refresh rate ≥1920HZ
Brightness in White Color (cd/m2): 800-1000 CD/m2
Contrast ratio ≥4000:1
Life time ≥100000 hours
Operating humidity 10%-90%RH
Average power consumption ≤300W/m2 (MAX 700)
Viewing Angle 120(Horizontal),120(Vertical)
Best Viewing Distance 5m-50m
Input Voltage 110V/60HZ-220V/50Hz Switchable
