P10 Outdoor DIP346 RGB LED Display 960x960mm Die-casting Aluminum Fixed installation LED Panel For Sale
$1,055.00 Original price was: $1,055.00.$400.00Current price is: $400.00.
P10 DIP346 outdoor commercial LED display board, high brightness, high refresh frequency, low attenuation, high reliability, good consistency, non-mosaic phenomenon.
SKU:
P10-4S-DIP346-32x16-L960xH960
Categories: Outdoor LED Billboard Advertising 960x960
Share:
P10 Outdoor DIP346 RGB LED Display 960x960mm Die-casting Aluminum Fixed installation LED Panel For Sale
Notice before order:

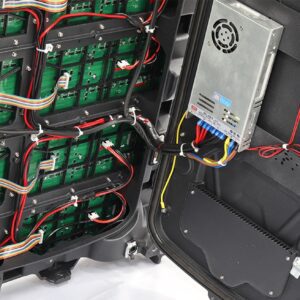

1) Parts included : Waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
P10 Outdoor DIP346 1R1G1B DIP570 3IN1 960x960mm Die-cast Fixed installation LED Panel For Sale Features:
1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 120 degrees.
2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness
difference is within 10%.
3) Small gaps between modules and perfect screen flatness. The gaps between modules are smaller than 1 mm and screen flatness is less than 1 mm.
4) High Level waterproof level which is suit for outdoor fixed installation.
5) 3840HZ refresh rate, 14bit color depth,10,000 pixel/sqm.
6) Easy to move and install .
Outdoor High Brightness P10 DIP346 LED Digital Display 960x960mm Applications:
Exterior advertising LED display
Exterior rental LED display
P10 Outdoor DIP346 RGB LED Display 960x960mm Die-casting Aluminum Fixed installation LED Panel For Sale Parameter:
| Module Parameter | |
| Pixel Pitch | 10mm |
| Pixel Configuration | DIP346 |
| Density | 10,000 pixels/㎡ |
| Module Resolution | 32pixel(L) * 16pixel(H) |
| Module Dimension | 320mm(L) * 160mm(H) * 30mm(D) |
| Driving Mode | Constant current, 1/4 duty |
| Module Mask | Pure black mask—high contrast screen |
| Color Temperature | 5000—9300 adjustable |
| LED Cabinet | |

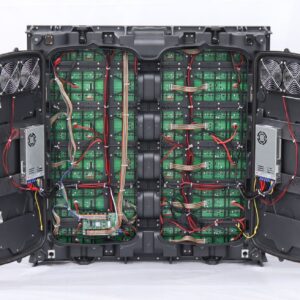

| Module Quantity in a Cabinet | 3(L) * 6(H) |
| Cabinet Dimension | 960（L）* 960（H）* 144(D)mm |
| Cabinet Resolution | 96(L) * 96(H) |

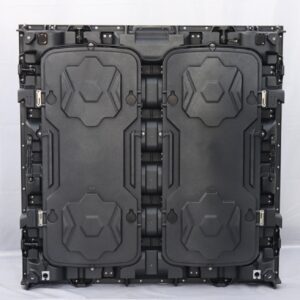

| Cabinet Material | Die-Cast magnesium alloy |
| Cabinet Weight | ≈30KG |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥7,500 cd/㎡ |
| Viewing Angle | 110°(Horizontal); 50°(Vertical) |
| Best Viewing Distance | ≥10m |
| Gray Grade | 16 bits |
| Display Color | 4.4 trillion Colors |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Operation Power | AC100-240V 50-60Hz Switchable |
| Max. Power Consumption | 520W/㎡ |
| Avg. Power Consumption | 175W/㎡ |
| Control System | |
| Frame Frequency | ≥60Hz |
| Refresh Frequency | ≥3840Hz |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); |
| 20KM(optical fiber cable) | |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Storage Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Operating Time | ≥72 hours |
| Protection Grade | IP65(front), IP54(rear) |
| Out-of-Control Pixel Rate | ≤0.01% |
