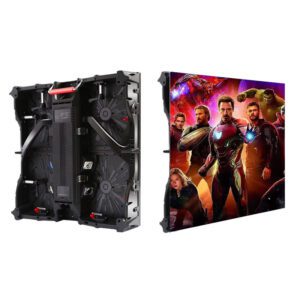

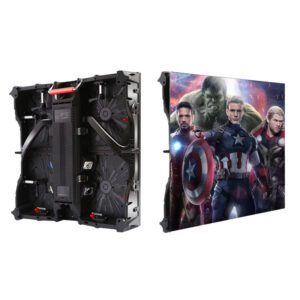

Outdoor P2.6 LED Video Wall Display LED Screen 500x500 LED Module

Outdoor P2.6 LED Video Wall Display LED Screen 500×500 LED Module 250×250

2 Years Warranty

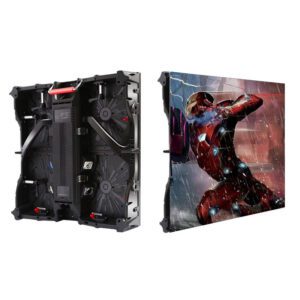

Magnesium Alloy
Free tech guide
5% Spare Part, Power Supply, Receiver cards included.
Lead time: 15-21 working days.
Package：Flight Case
Customized: If have special needs on size, lamps, IC or other requests, pls contact us.

Outdoor P2.6 LED Video Wall Display LED Screen 500×500 LED Module 250×250

Item	Technical Parameters
Nationstar REESTAR LED Chip Parameters
Item Name	LED Type
Red LED	SMD1415
Green LED	SMD1415
Blue LED	SMD1415
LEEMAN LED DISPLAY Module Specification
Pixel Pitch	LeemanLED-P2.604mm
Pixels Density	147,456 pixels/m2
LED Configuration	Nationstar SMD RGB 3in1
Package Mode	SMD1415
Module Size	250mm X 250mm
Module Resolution	96 x 96 pixels
Module Pixles	9216 pixels
Max Power Consumpion	50W
Module Thickness	25mm
PCB Board	4 Layer PCB Board With 1.6mm
Driving IC	MBI5253 or ICN2163
Drive Type	Constant drive
Driving Method Scan Mode	Dynamic 1/16 Duty constant current
Port Interface Type	HUB75
Module Input Voltage	DC5V
Brightness of White Balance	≥6500cd/㎡
Module Mask	Pure Black mask-high contrast screen

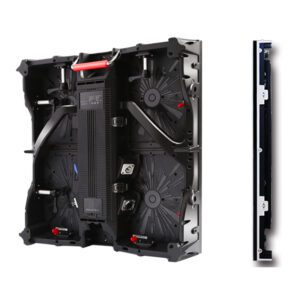

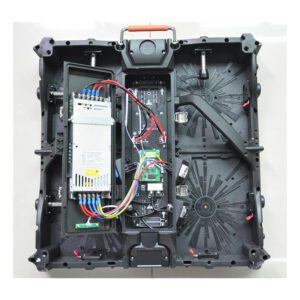

Cabinet Size	500mm×500mm×65mm or 500mm×1000mm×65mm
Cabinet Material	Die-casting Aluminum
Cabinet Weight	6.5kg
Cabinet Resolution	192(H)×192(V)
Cabinet Density	36864pixels/cabinet
Cabinet Maintenance Way:	Front & Rear
Electricity Parameter
Brightness	≥6500cd/㎡
Gray Scale	16bits
View Angle	160 degree ( horizontal) 160degree(vertical)
Best View Distance	2m-50m
Max Power Consumption	800w/㎡
Avg Power Consumption	300w/㎡
Operation Power	AC100-240V 50-60HZ Switchable
LED Control System
Software	NOVASTAR LED, Compatible with LINSN LED, COLORLIGHT LED
Correction Scale Level	256bits
Frame Update Frequency	60Hz
Fresh frequency	1920-3840
Gamma Correction	-5.0—5.0
Support Input	Composite Video, S-Video, DVI, HDMI, VGA, SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Color Temperature	5000-9200 adjustable
Brightness Correction	dot by dot, module by module, cabinet by cabinet
Working Parameter
Operating Life	100,000 hours
Operating Humidity	15-90% RH
Operating Temperature.	-25-65 Celsius degree
MTBF	10,000 Hours
Protection Level	IP65
Out of Control Pixel Rate	0.01%
Continuous Working Time	≥72 Hours
Interface	Standard Ethernet
Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
Power Supply Brand	G-energy, MeanWell, Chuanglian or as you required
Certificate	CE, RoHS, FCC, UL, EMC
