NovaStar NovaPro HD LED Video ...
$2,649.00 Original price was: $2,649.00.$2,620.00Current price is: $2,620.00.
Novastar CVT310 Multi-Mode Opt...
$115.00 Original price was: $115.00.$112.00Current price is: $112.00.
Sale
NovaStar VX2U LED Video Panel Controller Novastar VX2U LED Video Processor
$950.00 Original price was: $950.00.$925.00Current price is: $925.00.
- Input: 2 CVBS, 2 VGA, 1 DVI, 1 HDMI, 1 DP, 1 USB
- Resolution: 1920 * 1200@60Hz
- video output carrying capacity: 1.3 million pixels;
SKU:
NOVA-VX2U
Categories: Novastar LED Control Card
Share:

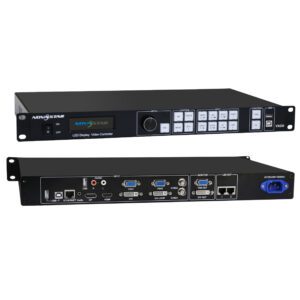

NovaStar VX2U LED Video Panel Controller Novastar VX2U LED Video Processor Details
Novastar VX2U LED Video Processor is a professional LED display controller of NovaStar.
And, VX2U features the powerful front end video processing, With high image quality and flexible image control.
It has the follow up features:
- All-in-One Controller
- CVBS / VGA / DVI / HDMI / DP / USB
- 1,300,000 pixels
- PIP
- Auto fit
NovaStar VX2U LED Video Panel Controller Novastar VX2U LED Video Processor Input Index |
||
| Port | Qty | Resolution Specifications |
| CVBS | 2 | PAL/NTSC |
| VGA | 2 | VESA Standard, max support 1920×1200@60Hz input |
| DVI | 1 | VESA Standard (support 1080i input), support HDCP |
| USB | 1 | Multimedia file formats: avi, mp4, mpg, mkv, mov and vob
Image file formats：jpg, jpeg, bmp and png |
| Multimedia coding formats: MJPEG, MPEG-1, MPEG-2, MPEG-4, DivX, H.264, Xvid | ||
| HDMI | 1 | EIA/CEA-861 standard, in accordance with HDMI-1.3 standard, support HDCP |
| DP | 1 | VESA Standard |
Output Index |
||
| Port | Qty | Resolution Specifications |
| DVI LOOP | 1 | Consistent with DVI input |
| DVI | 2 | Monitoring output connector Up to 1920×1200@60Hz |
| LED OUT | 2 | 2 Gigabit Ethernet outputs.
Only Ethernet port 1 supports audio output. When the multifunction card is connected for audio decoding, the multifunction card must be connected to the Ethernet port 1. Maximum horizontal resolution is 3840 pixels. Maximum vertical resolution is 1920 pixels. |
Overall Specifications |
|
| Input Power | AC100～240VAC，50/60Hz |
| Overall Power Consumption | 25W |
| Operating Temperature | -20~60℃ |
| Dimensions | 482.6×250×45（mm） |
| Weight | 2.55 Kg |
Be the first to review “NovaStar VX2U LED Video Panel Controller Novastar VX2U LED Video Processor” Cancel reply
