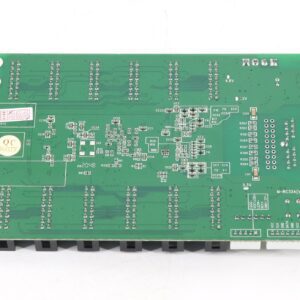

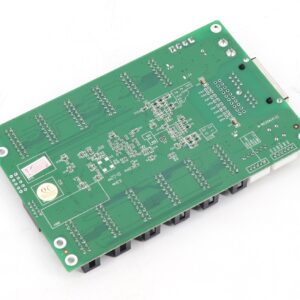

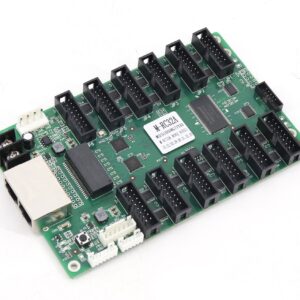

Moocell M-RC32A EMC LED Display Controller Card Integrated HUB75

Moocell M-RC32A EMC LED Display Controller Card Integrated HUB75:

1. Conventional RGB output with 24 groups, with 12 HUB75E interface.

2. A single card with a maximum load of 96K pixels, each data can carry 8K pixels.

3. Wide voltage input, the input voltage range of +3.5 V — +6 V.

4. Conventional chip high refresh, high brightness, high gray.

5. Double backup with network cable.

6. Support brightness and chroma point-by-point correction. And does not reduce the receiving area of the receiving card.

7. Support a wide range of driver chips. Support PWM chip, point by point detection chip, conventional chip.

8. Support receiving card pre-screen settings.

9. Support all receiving card parameter monitoring function.

10. Support external environment monitoring function.

11. Intelligent recovery function. There is no need to reload the program after replacing the receiving card.

12. Never black screen. And intelligent power supply, in the event of a power failure, reduce the display brightness.

13. In line with EU RoHs standards.

14. Conforms to European CE-EMC standard.
