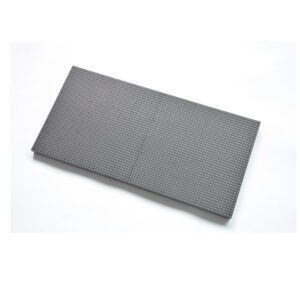

Indoor P2.5 LED Display Module 160x80mm 1/16 Scan Arduino SMD LED Panel 64*32 pixels
$14.88
Lead Time: 15-21 Working Days
Pixel Pitch:2.5mm
LED Type: SMD2121
Module Size: 160*80 mm
Model Pixel: 64*32 Pixels
Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO
SKU:
Leeman-P2.5-64X32-32S
Categories: Indoor LED Display Module
Share:
Indoor P2.5 LED Display Module 160x80mm 1/16 Scan Arduino SMD LED Panel 64*32 pixels
Indoor P2.5mm SMD LED Display Module Size is 160mmx80mm With 64×32 dots.
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
- If you want to build led screen, please buy enough LED Modules and Spare Parts.
- Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.
Remark:
- LED Module including the Data & Power Cables.
- 2 Years Warranty, Ship in 24 hours, Free Online Support.
- LED Module Can Work With Linsn, Novastar, Colorlight, Xixun HUIDU LED ConTrol Card Etc.
- 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.
Indoor P2.5 LED Display Module 160x80mm 1/16 Scan Arduino SMD LED Panel 64*32 pixels Main Specifications:
| Items | Parameter |
|---|---|
| Product Model | P2.5mm Indoor LED Module |
| Module size | 160mmx80mm |
| resolution ratio | 64*32dots |
| Pixel pitch | 2.5 mm |
| Pixel configuration | RGB 3in1 |
| Driving method | Constant Current Driving,1/16 scan |
| Working voltage | DC5V |
| Module maximum power consumption | 55W/Pc |
| Led Lamps | SMD2121 (Black LED) |
Electrical Parameters |
|
| Frame rate | 60Hz/Second |
| Refresh rate | ≥1920HZ |
| Brightness in White Color (cd/m2): | 800-1000 CD/m2 |
| Contrast ratio | ≥4000:1 |
| Life time | ≥100000 hours |
| Operating humidity | 10%-90%RH |
| Average power consumption | ≤300W/m2 (MAX 700) |
| Viewing Angle | 140(Horizontal),140(Vertical) |
| Best Viewing Distance | 2.5m-25m |
| Input Voltage | 110V/60HZ-220V/50Hz Switchable |
