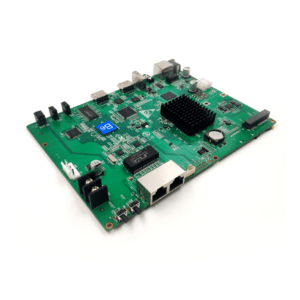

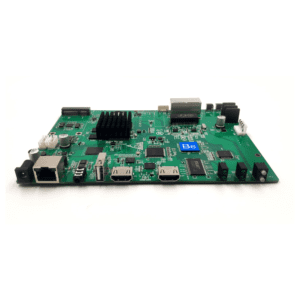

HUIDU HD-B6 Dual-mode LED Module Controller card

HUIDU HD-B6 Dual-mode LED Module Controller card

Descriptions

Support Asynchronous & Synchronous.
Control Range:1.30 million pixels,Support HDMI multiple card splicing up to 2.3 million (1920*1200)pixel；
Support HDMI automatic zooming function；
HDMI LOOP，Support multiple B6 stitching；
One B6 control card support widest 3840 pixel, highest 2048 pixel.
8GB memory, support expending memory by U-disk,
Support HD video decoding, 60Hz frame rate output
No need set IP address, it could be identified by controller ID automatically
Unified management of more LED display through Internet or LAN.
Equipped with Wi-Fi, Mobile APP management.
Equipped 3.5mm standard audio interface output.

Output: CAT6 LAN
Memory: 8G Byte On Board, Support U-Disk expend
Communication: U+Disk& LAN/WIFI, 3G/4G (Need buy module)
Scan Mode: Static – 1/64 scan, Support smartsetting
Gray Level: 256 – 65536 graylevel
Programs: No Limit, can play by time section
Regions: No limit, Support regions overlap, regions transparent
Content: Video/Text/Picture/Time/3D Text/ Office/ SWF
Video Type: AVI,WMV,RMVB, MP4, MPG,FLV,SWF,VOB,etc
Effects: more than 40 effects and image background, shaped boder
