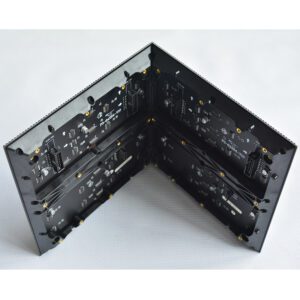

320×160 P2 LED Screen Panel 1/40 Scan Indoor SMD LED Module
$68.50 Original price was: $68.50.$17.50Current price is: $17.50.
Pixel Pitch:2mm
LED Type: SMD1515
Module Size: 320*160 mm
Model Pixel: 160*80 Pixels
Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO
SKU:
Leeman 320x160 P2 LED Screen Panel
Categories: Indoor SMD LED Module
Share:
320×160 P2 LED Screen Panel 1/40 Scan Indoor SMD LED Module
Indoor P2mm SMD LED Display Module Size is 320mmx160mm With 160×80 dots.
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
- If you want to build led screen, please buy enough LED Modules and Spare Parts.
- Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.
Remark:
- LED Module including the Data & Power Cables.
- 2 Years Warranty, Ship in 24 hours, Free Online Support.
- LED Module Can Work With Linsn, Novastar, Colorlight, Xixun huidu LED Control Card Etc.
- 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.
P2 Indoor LED Screen Panel 320mmx160mm 1/40 Scan SMD LED Module Main Specifications:
| Items | Parameter |
|---|---|
| Product Model | P2mm Indoor LED Module |
| Module size | 320mmx160mm |
| resolution ratio | 160*80dots |
| Pixel pitch | 2 mm |
| Pixel configuration | RGB 3in1 |
| Driving method | Constant Current Driving,1/40 scan |
| Working voltage | DC5V |
| Module maximum power consumption | 55W/Pc |
| Led Lamps | SMD1515 (Black LED) |
Electrical Parameters |
|
| Frame rate | 60Hz/Second |
| Refresh rate | ≥3840HZ |
| Brightness in White Color (cd/m2): | 800-1000 CD/m2 |
| Contrast ratio | ≥4000:1 |
| Life time | ≥100000 hours |
| Operating humidity | 10%-90%RH |
| Average power consumption | ≤300W/m2 (MAX 700) |
| Viewing Angle | 140(Horizontal),140(Vertical) |
| Best Viewing Distance | 2m-20m |
| Input Voltage | 110V/60HZ-220V/50Hz Switchable |
