Transparent LED Display - Adhesive Transparent LED Film Screen

Transparent LED Display 1000×1000 P3.91 Adhesive Transparent LED Adhesive Film Screen Indoor Outdoor

Indoor Transparent LED Screen Rental 1000×500 Transparent LED Display Manufacturer
LM1000TiR series transparent rental LED display for rental application with quick set-up, super high permeability,
ultra-thin Ultra-light structure design, high precision,modularized design, more than 70% transparency, easy installation and disassamble.

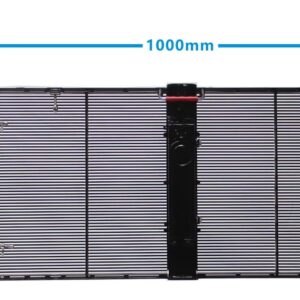

500*1000mm Lightweight Indoor Transparent LED Screen Rental Cabinet
Die-cast aluminum cabinet, transparent structure, the weight is only 7.5kg/pcs, Cabinet size：1000 x500mm

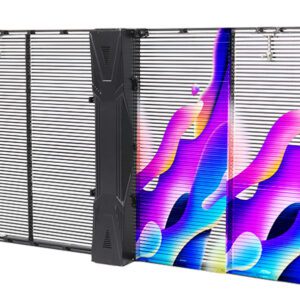

70% High Transparency
70% transparency, greatly reduce wind resistance, better cooling effect, without affecting the indoor vision

Perfect Structure
Stable and reliable screen body with good heat dissipation effect.

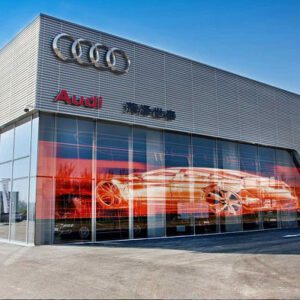

The screen can be hung or mounted on the window. Multi-screen interaction.

Easy to Install LED Transparent Film Screen
Stacking, hanging and fixed installations are supported.

Super Wide Viewing Angle
Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

Indoor 1000×500 Rental Transparent LED Film Display Parameter

Pixel Pitch (mm)	P3.91-7.82	P3.91-7.82	P7.81	P10.42
Pixel Configuration	LM1000TiR-P3.91-8S	LM1000TiR-P3.91-16S	LM1000TiR-P7.81	LM1000TiR-P10.42
Pixel Configuration	SMD1921	SMD1921	SMD1921	SMD3535
Density (Pixels/㎡)	32,768	32,768	16,384	9,216
Module Resolution (Pixel)	128×16	128×16	64×16	48×12
Module Size (mm)	500×125	500×125	500×125	500×125
Driving Mode (Duty)	1/8	1/16	1/4	1/3
Cabinet Size (mm)	1000×500	1000×500	1000×500	1000×500
Cabinet Weight (KG)	7.5	7.5	7.5	7.5
Brightness (CD/㎡)	≥5000	≥2500	≥5000	≥4000
Transparency	53	53	58	70
Viewing Angle (°)	140	140	140	140
Gray Grade (Bits)	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	800	800	800	800
Avg. Power Consumption (W/㎡)	220	220	220	220
Frame Frequency (Hz)	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3,840	≥3,840	≥3,840	≥3,840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000
Protecting Grade	IP33	IP33	IP33	IP33
