Transparent LED Screen - Transparent Glass Wall LED Display

Transparent LED Screen 500×1000 Indoor Transparent Glass LED Screen P2.6-5.2 P2.8-5.6 P3.125-3.125 P3.91-7.82 P7.82-7.82 P10.42-10.42 P15.625

Outdoor Waterproof Transparent LED Display Screen 500×1000 Simple appearance , Super-light, Ultra-thin
Designed for ease of installation and maintenance , eliminating huge heavy load supporting structures which is often associated with alternative conventional LED methods.

Modular Design, Easy Maintenance
Integrated modular design, maintenance only needs to replace single module, and single –point maintenance is also possible Pluggable design of network cable and power card ,quick connection operation

High-Brightness
Using high-brightness outdoor power supplies, the display can compete with direct sunlight exposure at peak times of the day

Indoor & Outdoor Transparent LED Screen Quick Lock Feature
Our lock system allows for easy hanging and connection between panels. This unique locking system works with a speedy and effortless, easy operation

P3.91 Indoor 1000×500 Transparent LED Film Screen Application:

Features: Transparent Window LED Display is designed to meet the requirement that LED Display should be Transparent, so that people can watch the things behind the LED Display. And it also have all the feature that the normal LED Display has, that means it can display dynamic digital sources like commercial brand name, logo, slogon, and even advertisement film to catch the attention of the potential consumer. The Transparent LED Display is always installed inside the glass wall of the building or the street side shop/store. It can be a small size for 2sqm to a big one that reaches hundreds of sqm..

P3.91 P7.82 Transparent LED Windows Screen 1000×500 Parameter:

Item	Technical Parameters
Nationstar SMD Gold Wire LED Chip Parameters
Item Name	LED Type
Red LED	SMD 1921
Green LED	SMD 1921
Blue LED	SMD 1921
LEEMAN LED Display Module Specification
Pixel Pitch	P3.91mm – P7.82mm
Pixels Density	32,768 pixels/m2
LED Configuration	Nationstar SMD RGB 3in1
Package Mode	SMD1921
Module Size	1000mm x 500mm x 25mm and 1000mm x 1000mm x 25mm
Module Resolution	256dots(H)*64dots(V)
Module Pixles	16,384 pixels
Max Power Consumpion	300W
Module Thickness	25mm
PCB Board	4 Layer PCB Board With 1.6mm
Driving IC	MBI5153 MBI5264 ICN2153 ICN2163 ICN2065 ICN3065 FM6363 FM6356 FM6864
Drive Type	Constant drive
Driving Method Scan Mode	Dynamic 1/8 Duty constant current
Port Interface Type	HUB75
Module Input Voltage	DC 5V
Brightness of White Balance	≥6000cd/m2
Module Mask	Pure Black mask-high contrast screen
LEEMAN LED Display Cabinet Specification
Cabinet Dimension	1000mm x 500mm x 25mm and 1000mm x 1000mm x 25mm
Module Quantity	2pcs
Cabinet Resolution	256dots(H)*64dots(V)
Cabinet Weight	7.5kg per cabinet
Cabinet Material	Die Casting Aluminum
Best viewing distance	3M～100M
Best viewing angle	160°(H) 160°(V)
Average Power consumption	250W/m2
Max.Power consumption	≤600W/m2
Contrast ratio	6000:1
Grey scale/colors	16bits～24bits, 4096 levels of each color(RGB)/16.7M colors
Frame Frequency	≥60Hz
Refresh frequency	≥3840Hz – 7680HZ
Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
Temperature	storage:-35℃～+85℃
Temperature	working:-20℃～+50℃
Humidity	10%-95%
IP Grade	IP54
Grey scale/colors	256levels of each color(RGB)/16.7M colors
MTBF	≥5,000hours
Screen Lifespan	≥100,000 hours
Screen Plainness	＜±1mm
Blind Spot Rate	＜0.0001
CPU	Pentium4 or above
Control Mode	Synchronous display with control PC by DVI HDMI
Control System	DVI video card + full color control card + fiber system(optional)
Operation system	WINDOWS 8/10/IOS/NT/XP IOS Android
Control method	Synchronous display with control PC by DVI
Controller System	Novastar LED Card, Colorlight LED Card, Linsn LED Card, Huidu LED Card
Display Content	HDMI , VGA, DVI, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
Interface	Standard Ethernet, HDMI ,DVI, VGA, USB, WIFI, 4G 5G Wireless
Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable
Packaging Method	Fly case Flight box Wooden box, Carton box
Power Source	Meanwell, Delta, TDK, G-energy, CZCL, Vicor, MEGMEET
PowerCon	Neutrick Power connector with cable
EtherCon	Neutrick Power connection with cable
Certificate	CE, RoHS, FCC, UL, EMC, ETL, ISO, PSE, KC, TUV
Application	Outdoor, Indoor Rental or Fixed installation Purpose

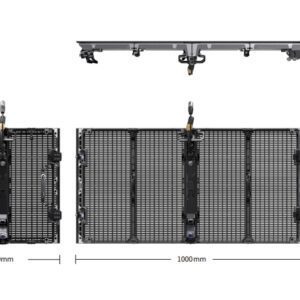

More Pictures of P3.91-7.82 1000×500 High Brightness Transparent LED Glass Display:
