P5 LED Screen Panel 640×480 LED Digital Church Display Panels Refresh Rate 7680Hz Details

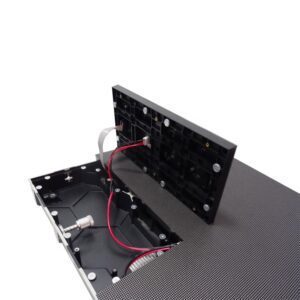

New Product 640X480 Series LED Display LEEMAN LED video wall for indoor fixed installation applications. fine pixels, perfect desgin, front service for LED power supply, cards and modules, ultra lightweight, magnesium alloy cabinet design, 4:3 ratio cabinet with 640*480mm dimension, flatness, easy to install and disassemble.
Notice before order:
1) Parts included : High-quality cabinets, LED modules, power supplies, NOVASTAR or COLORLIGHT receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
P5 LED Screen Panel Display 640mmX480mm Front Service LED Video Wall Panel Specification
Item | Technical Parameters |
Nationstar Gold Wire SMD LED Chip Parameters | |
Item Name | LED Type |
Red LED | SMD2121 |
Green LED | SMD2121 |
Blue LED | SMD2121 |
LEEMAN LED Display Module Specification | |
Pixel Pitch | P5mm |
Pixels Density | 40,000 pixels/m2 |
LED Configuration | Nationstar SMD RGB 3in1 |
Package Mode | SMD2121 |
Module Size | 320mm X 160mm and 160mm x 160mm |
Module Resolution | 64 x 32 pixels and 32 x 32 pixels |
Module Pixles | 2048 pixels and 1024 pixels |
Max Power Consumpion | 30W and 20W |
Module Thickness | 18mm |
PCB Board | 4 Layer PCB Board With 1.6mm |
Driving IC | MBI5153 MBI5264 ICN2153 ICN2163 ICN2065 ICN3065 FM6363 FM6356 FM6864 |
Drive Type | Constant drive |
Driving Method Scan Mode | Dynamic 1/16 Duty constant current |
Port Interface Type | HUB75 |
Module Input Voltage | DC 5V |
Brightness of White Balance | ≥2000cd/㎡ |
Module Mask | Pure Black mask-high contrast screen |
LEEMAN LED Display Cabinet Specification | |
Cabinet Size (W X H X D) | 640mm x 640mm x 65mm or 960mm x 960mm x 75mm |
Cabinet Resolution (dot) | 128 x 128 pixels or 192 x 192 pixels |
Module Quanity (pcs) | 8pcs or 18pcs |
Cabinet Pixels | 16384 pixels |
Pixel Density | 40,000 pixels/m2 |
Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
Cabinet Weight | 6.5kg per cabinet |
Packaging | Fly case |
Whole LEEMAN LED Display Screen Specification | |
Screen Brightness | ≥2000cd/m2 |
Driving Method | Constant current |
Best Viewing Distance | 4m – 100m |
Max. Power Consumption | 600W/m2 |
Average Power Consumption | 250W/m2 |
Gray Level | 16bits~24bits input, 4096 levels(212) |
Display Color | 256M |
Contrast ratio | 6000:1 |
Frame Frequency | ≥60Hz |
Refresh Frequency | ≥3840Hz – 7680Hz |
Uninterrupted Working Hours | ≥72 hours |
Screen Life-span | ≥100,000 hours |
MTBF | ≥10,000 hours |
Discrete Blind Spot Rate | <1/10000 |
Continuous Blind Spot Rate | None |
Blind Spot Rate | <1/10000 |
Protective Scale | For indoor use, non-waterproof |
Screen Plainness | <±1mm |
Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
Environment Temperature | Temperature:-20 Celsius~+60 Celsius |
Humidity | Humidity:10%~90% RH |
Control Mode | Synchronous display with control PC by DVI HDMI |
Control System | DVI video card + full color control card + fiber system(optional) |
Operation system | WINDOWS 8/10/IOS/NT/XP IOS Android |
Control method | Synchronous display with control PC by DVI |
Controller System | Novastar LED Card, Colorlight LED Card, Linsn LED Card, Huidu LED Card |
Display Content | HDMI , VGA, DVI, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
Interface | Standard Ethernet, HDMI ,DVI, VGA, USB, WIFI, 4G 5G Wireless |
Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable |
Packaging Method | Fly case Flight box Wooden box, Carton box |
Power Source | Meanwell, Delta, TDK, G-energy, CZCL, Vicor, MEGMEET |
PowerCon | Neutrick Power connector with cable |
EtherCon | Neutrick Power connection with cable |
Certificate | CE, RoHS, FCC, UL, EMC, ETL, ISO, PSE, KC, TUV |
Application | Outdoor, Indoor Rental or Fixed installation Purpose |
