P2 LED Screen 640x480 P2 LED Video Wall

P2 LED Screen 640×480 SMD Full Color LED Display Details

Notice before order:

1) Parts included : High-quality cabinets, LED modules, power supplies, NOVASTAR or COLORLIGHT receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

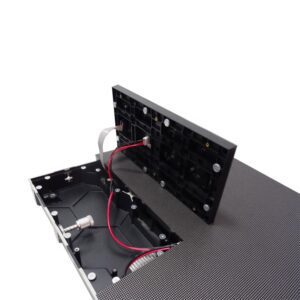

New Product LEEMAN LED Display LED video wall for indoor fixed installation applications. fine pixels, perfect desgin, front service for LED power supply, cards and modules, ultra lightweight, magnesium alloy cabinet design, 4:3 ratio cabinet with 640*480mm dimension, flatness, easy to install and disassemble .

P2 Indoor LED Display Screen 640mmX480mm Indoor LED Wall Screen with Mounting System

P2 LED Panel Screen 640mmX480mm Specification

Model	Pixel Pitch	Module Size	Scan Method	Cabinet Size	Cabinet Weight	Brightness (CD/m2)
LM640-1.25	1.25mm	320x160mm	1/32 Scan	640x480mm	5.5kg	1000-1200
LM640-1.37	1.37mm	320x160mm	1/29 Scan	640x480mm	5.5kg	1000-1200
LM640-1.53	1.53mm	320x160mm	1/26 Scan	640x480mm	5.5kg	1000-1200
LM640-1.66	1.66mm	320x160mm	1/32 Scan	640x480mm	5.5kg	1000-1200
LM640-1.83	1.83mm	320x160mm	1/29 Scan	640x480mm	5.5kg	1000-1200
LM640-1.86	1.86mm	320x160mm	1/43 Scan	640x480mm	5.5kg	1000-1200
LM640-2	2mm	320x160mm	1/40 Scan	640x480mm	5.5kg	1000-1200
LM640-2.5	2.5mm	320x160mm	1/32 Scan	640x480mm	5.5kg	1000-1200
LM640-3.07	3.07mm	320x160mm	1/26 Scan	640x480mm	5.5kg	1000-1200
LM640-4	4mm	320x160mm	1/20 Scan	640x480mm	5.5kg	1000-1200
LM640-5	5mm	320x160mm	1/16 Scan	640x480mm	5.5kg	1000-1200

Indoor Turn-Key LED System Novastar P2 LED Video Wall Display Indoor LED panels ideal for Churches

Part Number	Leeman-P2
Pixel Pitch	2mm
Pixels Density	250,000 pixels/m2
LED configuration	Nationstar Gold Wire SMD RGB 3in1
Package mode	SMD1515
Module size	256mm*128mm and 320mm x 160mm
Module resolution	128dots(W)64dots(H) and 160dots(W)80dots(H)
Max Power consumpion	35W and 45W
Module thickness	18mm
PCB board	4 Layer PCB Board With 1.6mm
Driving IC	MBI5153 MBI5264 ICN2153 ICN2163 ICN2065 ICN3065 FM6363 FM6356 FM6864
Drive type	Constant drive
Driving Method Scan mode	1/32 scan and 1/40 scan
Port Interface type	HUB75
Module Input Voltage	DC5V
Brightness of white balance	≥1200cd/m2
Cabinet Size	512mm x 512mm and 768mm x 768mm and 960mm x 960mm
Screen Weight	18kg/SQM
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	Gap<0.5mm
Optical Ratings
Brightness	1,200cd/ M2
View Angle	160°/140°
Contrast ratio	6000:1
Gray Scale	16bits～24bits input, correction with 16 bits
Display COLOR	256M
Brightness Adjustment	0～100%
Power Supply
Operation Power	110V 60Hz – 240V 50Hz
Max. Power Consumption	600W/ M2
Average Power Consumption	250W/ M2
Control System
Control Mode	Synchronous display with control PC by DVI
Controller Card System	Novastar LED Card, Colorlight LED Card, Linsn LED Card, Huidu LED Card
Frame Update Frequency	60～85Hz
Screen Refresh Frequency	3840Hz – 7680Hz
Gamma Correction	-5.0～+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode	1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction	Pixel, Module, Cabinet
Environmental
Operating Temperature	-20°～+60°
Operating Humidity	10～95% RH
Operating Life	100,000hours
MTBF	10,000hours
Protection Level	IP54
Out of Control Rate	<0.02%
Interface	Standard Ethernet, HDMI ,DVI, VGA, USB, WIFI, 4G 5G Wireless
Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable
Packaging Method	Fly case Flight box Wooden box, Carton box
Power Source	Meanwell, Delta, TDK, G-energy, CZCL, Vicor, MEGMEET
PowerCon	Neutrick Power connector with cable
EtherCon	Neutrick Power connection with cable
Certificate	CE, RoHS, FCC, UL, EMC, ETL, ISO, PSE, KC, TUV
Application	Outdoor, Indoor Rental or Fixed installation Purpose
