P3.33mm Outdoor Video SMD LED Panel 160x160mm LED Module

Original price was: $35.00.Current price is: $33.00.

Pixel Pitch: 3.33mm

LED Type: SMD1921

Module Size: 160*160 mm

Model Pixel: 48*48Pixels

or
SKU: LCC-P3.33-48X48-OS-12S Categories:

Share:

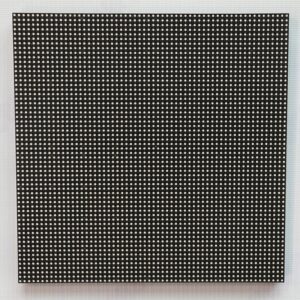

P3.33mm Outdoor Video SMD LED Panel 160x160mm LED Module

Outdoor P3.33mm SMD LED Display Module Size is 160mmx160mm With48x48 dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
  • If you want to build led screen,please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

P3.33mm Outdoor Video SMD LED Panel 160x160mm LED Module Main Specifications:

Items Parameter
Product Model P3.33mm outdoor fine pitch LED Module
Module size 160x160mm
resolution ratio 48*48dots
Pixel pitch 3.33mm
Pixel density 90000dots/sqm
Pixel configuration SMD 3in1
Driving method Constant Current Driving,1/121scan
Working voltage DC5V
Module maximum power consumption 55W/Pc
Led Lamps SMD1921

Electrical Parameters

Frame rate 60Hz/Second
Refresh rate ≥1920HZ
Brightness in White Color (cd/m2): 4500-5500 CD/m2
Contrast ratio ≥4000:1
Life time ≥100000 hours
Operating humidity 10%-90%RH
Average power consumption ≤450W/m2 (MAX 850)
Viewing Angle 120(Horizontal),120(Vertical)
Best Viewing Distance 3.3m-33m
Input Voltage 110V/60HZ-220V/50Hz Switchable

High Quality LEDs:

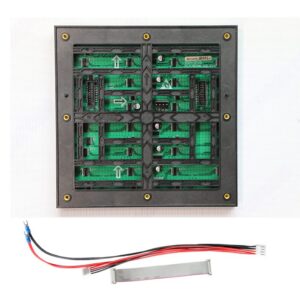

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72+ Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
