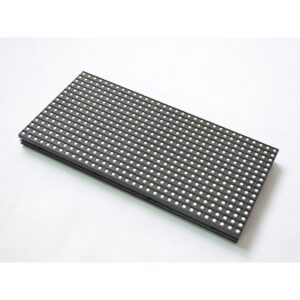

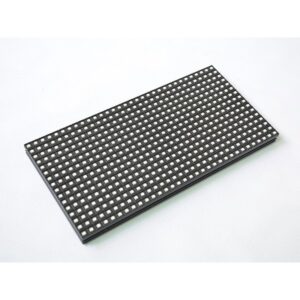

128×256 Outdoor LED Screen P8 SMD RGB LED Module Cheap Price
Outdoor P8mm SMD LED Display Module Size is 256mmx128mm With32x16 dots.
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
- If you want to build led screen,please buy enough LED Modules and Spare Parts.
- Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.
128×256 Outdoor LED Screen P8 SMD RGB LED Module Specifications:
Items | Parameter |
---|---|
Product Model | P8mm outdoor LED Module |
Module size | 256x128mm |
resolution ratio | 32*16dots |
Pixel pitch | 8mm |
Pixel density | 15625dots/sqm |
Pixel configuration | SMD 3in1 |
Driving method | Constant Current Driving,1/4scan |
Working voltage | DC5V |
Module maximum power consumption | 55W/Pc |
Led Lamps | SMD3535 |
Electrical Parameters |
|
Frame rate | 60Hz/Second |
Refresh rate | ≥1960HZ |
Brightness in White Color (cd/m2): | 5500-6000 CD/m2 |
Contrast ratio | ≥4000:1 |
Life time | ≥100000 hours |
Operating humidity | 10%-90%RH |
Average power consumption | ≤450W/m2 (MAX 850) |
Viewing Angle | 120(Horizontal),120(Vertical) |
Best Viewing Distance | 8m-80m |
Input Voltage | 110V/60HZ-220V/50Hz Switchable |
High Quality LEDs:
High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.
72+ Hours Aging
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
