P3.076 P3.33 LED Screen Outdoor LED Display Module 320x160

P3.076 P3.33 LED Screen Outdoor LED Display Module 320×160

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

Outdoor P3.076 320x160mm LED Screen Display Module Parameter:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD1415	48mcd		120°/120°	622nm	25℃,8mA
Green		155mcd		120°/120°	526nm	25℃,5mA
Blue		20mcd		120°/120°	470nm	25℃,3mA
Module Parameter
Pixel Pitch			3.076mm
Pixel Configuration			SMD1415
Density			105,688 pixels/㎡
Module Resolution			104pixel(L) * 52pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 25mm(D)
Driving Mode			Constant current, 1/13 duty
Electricity Parameter
Optical Ratings
Brightness			≥5,000 cd/㎡
Viewing Angle			120°(Horizontal)； 120°(Vertical)
Best Viewing Distance			≥3m
Gray Grade			14 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			40W
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥1920Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable);
			20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP65
Out-of-Control Pixel Rate			≤0.01%

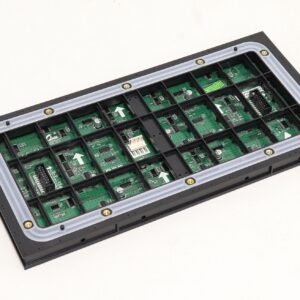

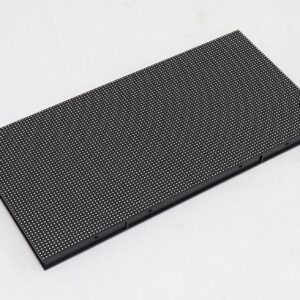

More Pictures of Outdoor P3.076 P3.33 LED Screen Display Module 320x160mm:
