LED Display P6.67 Outdoor SMD LED Module 320×160 COB led screen supplier

Original price was: $11.50.Current price is: $7.30.

Pixel Pitch: 6.67mm

LED Type: SMD3535

Module Size: 320*160 mm

Model Pixel: 48*24 Pixels

SKU: LCC-P6.67-48X24-OS-6S Categories: Outdoor SMD LED Module

Description

Shipping & delivery

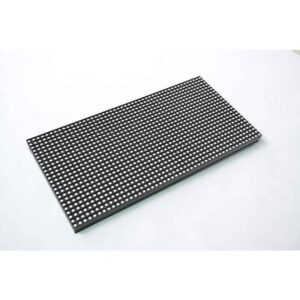

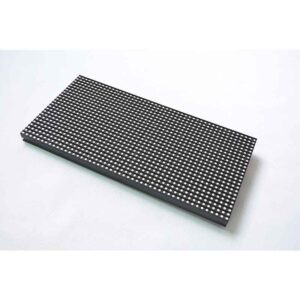

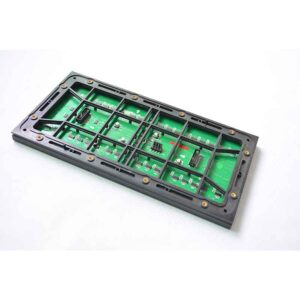

LED Display P6.67 Outdoor SMD LED Module 320×160

Outdoor P6.67mm SMD LED Display Module Size is 320mmx160mm With 48x24dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
If you want to build led screen,please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

P6.67 Outdoor LED Display Advertising 320×160 SMD LED Panel Module Main Specifications:

Items	Parameter
Product Model	P6.67mm outdoor LED Module
Module size	320x160mm
resolution ratio	48*24dots
Pixel pitch	6.67mm
Pixel density	22500dots/sqm
Pixel configuration	SMD 3in1
Driving method	Constant Current Driving,1/6 scan
Working voltage	DC5V
Module maximum power consumption	55W/Pc
Led Lamps	SMD3535
Electrical Parameters
Frame rate	60Hz/Second
Refresh rate	≥1960HZ
Brightness in White Color (cd/m2):	5000-5500 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤450W/m2 (MAX 850)
Viewing Angle	120(Horizontal),120(Vertical)
Best Viewing Distance	6m-60m
Input Voltage	110V/60HZ-220V/50Hz Switchable

High Quality LEDs:

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.
